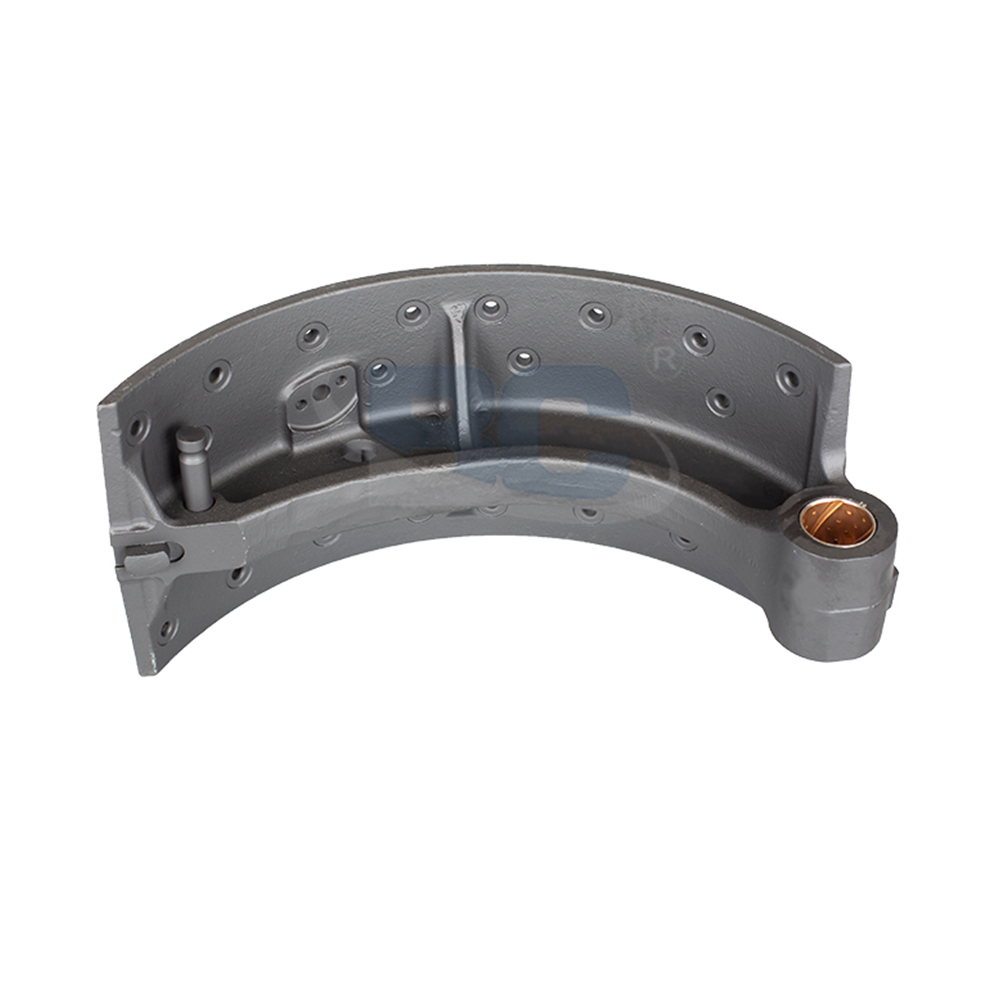

CAST BRAKE SHOE for HINO 165 OEM 474311540

Product Overview

The CAST BRAKE SHOE for HINO 165 is a precision-manufactured braking component designed exclusively for HINO 165-series commercial vehicles, a staple in medium-duty logistics and urban delivery fleets. As the foundation of the drum brake system, this cast iron shoe supports the friction lining and distributes braking force evenly across the drum surface. Engineered to meet SAE J2784 standards  and HINO’s strict OEM specifications, it delivers consistent performance, corrosion resistance, and long-term reliability—critical for vehicles operating in stop-and-go urban traffic or long-haul routes.

Product Advantages

Optimized Force Distribution for Stable Braking

The shoe’s cast iron structure features a precision-machined curvature that matches the HINO 165’s brake drum (radius: 203mm) . This perfect fit ensures uniform contact between the lining and drum, eliminating uneven wear and reducing braking vibration. Drivers report smoother stops and reduced pedal pulsation compared to generic aftermarket shoes.

Corrosion Resistance for Urban and Coastal Use

Treated with electrophoresis coating , the shoe’s surface resists rust and salt corrosion—essential for trucks operating in coastal cities or regions with winter road salt. Salt spray tests confirm the coating maintains integrity for over 500 hours, extending the shoe’s lifespan by 40% in harsh environments.

Lightweight Design Without Sacrificing Strength

Weighing just 5.7 kg per unit , the shoe reduces unsprung weight compared to competitors (average 7-8 kg), improving fuel efficiency by up to 2% and enhancing suspension responsiveness. Despite its light weight, the cast iron material maintains a tensile strength of 25 MPa , meeting HINO’s load-bearing requirements.

Product Characteristics

Material and Manufacturing

• Core Material: Gray cast iron (QT 450 grade) with induction quenching for surface hardness .

• Surface Treatment: Black electrophoresis coating (thickness: 8-10 μm) .

• Production Process: Precision casting → CNC machining → heat treatment → coating → inspection .

Dimensional and Fit Specifications

• Compatibility: Exclusively for HINO 165 models (2008-present) .

• Key Dimensions: Length: 323.85 mm; Width: 178 mm; Pivot Bore: 27 mm .

• Mounting Features: 24 rivet holes (5.2 mm diameter) for secure lining attachment .

Quality and Compliance

• Certifications: ISO/TS 16949, SAE J2784 .

• Warranty: 12 months or 80,000 km coverage .

FAQ

Is this brake shoe compatible with HINO 165 hybrid models?

Yes. The CAST BRAKE SHOE for HINO 165 is designed to fit both conventional and hybrid variants of the HINO 165, as HINO maintains consistent brake drum dimensions across powertrain options. It works seamlessly with the hybrid system’s regenerative braking, complementing electric stopping force with mechanical braking when needed.

Do I need to replace the lining when installing a new shoe?

While the shoe is supplied without a lining , it is strongly recommended to install a new compatible lining (e.g., HINO OEM part number 43512-E0010) during replacement. Reusing worn linings can cause uneven contact, reduce braking performance, and damage the new shoe’s surface.

How do I identify a genuine vs. counterfeit version?

Genuine products feature a laser-etched part number and HINO compatibility mark on the shoe’s backing plate. They also come with a traceable batch number and ISO/TS 16949 certification document. Counterfeits often have rough casting surfaces, inconsistent coating, and missing certification.

What maintenance is required for the brake shoe?

Inspect the shoe monthly for signs of cracking, corrosion, or lining delamination. Clean the shoe’s surface with a wire brush during routine brake service to remove brake dust and debris. Avoid using pressure washers directly on the shoe, as this can damage the electrophoresis coating.
