FMSI# 4515
OE#:
Dimension: 16.5"*7"
Lining WVA#:
Application: ROR, Trailer

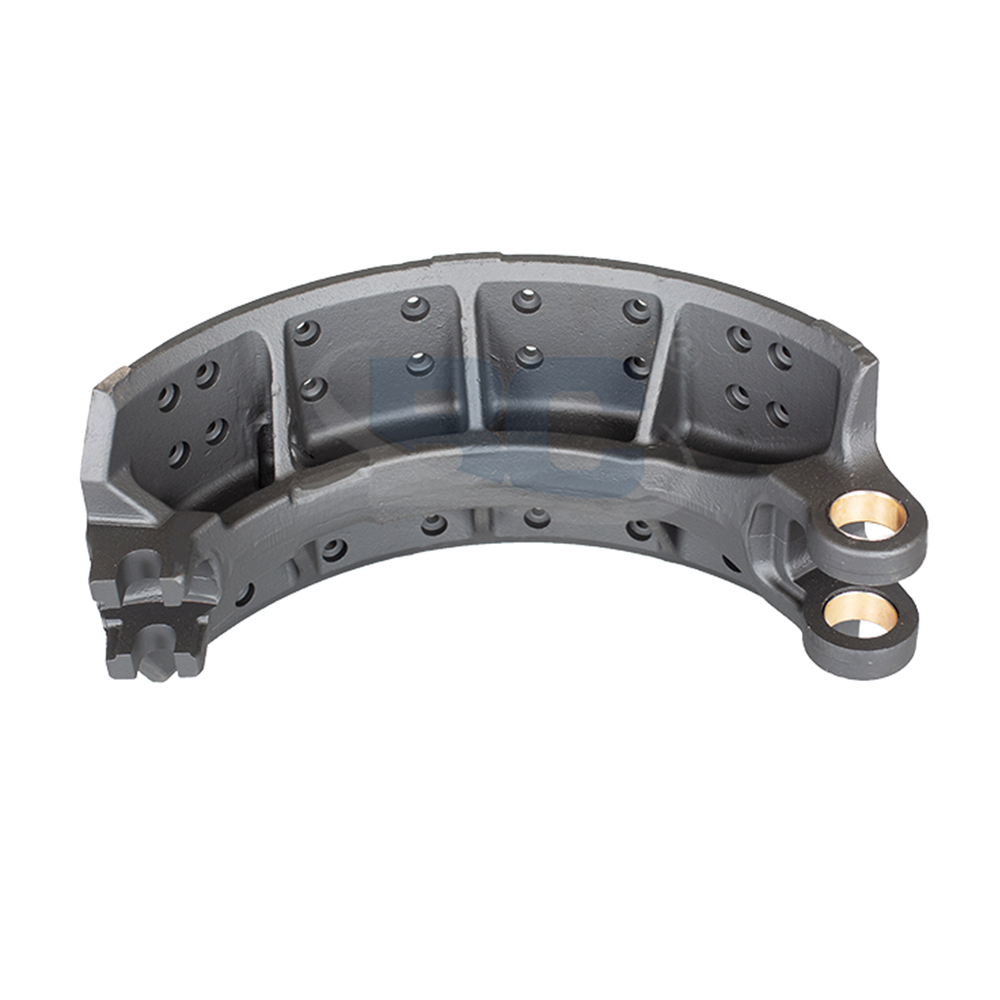

The 4515 Cast Brake Shoe, identified by FMSI# 4515, is a heavy-duty structural braking component engineered by Dingchi for ROR (Roll-on/Roll-off) vehicles and trailers. Unlike standard stamped steel brake shoes, this model uses a cast construction—delivering superior strength and durability for high-load applications. With dimensions of 16.5" (419mm) × 7" (178mm), it is precisely sized to fit ROR and trailer braking systems, ensuring optimal contact with brake linings and drums. While cast design makes it heavier than standard shoes and increases manufacturing costs, its enhanced performance and longevity make it a valuable investment for fleet operators hauling heavy cargo. Dingchi’s precision machining and quality control further ensure that each 4515 Cast Brake Shoe meets strict safety and performance standards.

The 4515’s cast design—using high-grade iron alloy—provides significantly greater structural rigidity than stamped steel shoes. This strength allows it to withstand the extreme mechanical stress of heavy braking in ROR vehicles and trailers, which often carry loads exceeding 23,000lbs. The cast material resists bending, cracking, and deformation, even under prolonged use or sudden stops—critical for preventing brake failure in high-risk scenarios (e.g., downhill hauling).
Every 4515 Cast Brake Shoe undergoes precision lathe machining on its outer diameter. This process ensures the shoe’s surface is perfectly smooth and uniform, allowing for maximum contact with the brake lining. Optimal contact distributes braking force evenly, reducing uneven wear on both the shoe and lining, and maintaining consistent stopping power. The machining also guarantees that the shoe’s 16.5" × 7" dimensions align exactly with ROR/trailer brake drum specifications, eliminating fitment issues.
Dingchi’s manufacturing process for the 4515 model ensures brake clearance (the gap between the shoe and drum) remains under 0.20mm. This tight clearance is critical for responsive braking—reducing the distance needed to engage the brakes and improving safety for ROR vehicles and trailers, which require quick stopping to manage heavy loads. Unlike standard shoes, which may develop increased clearance over time, the 4515’s cast construction and precision machining maintain consistent clearance throughout its lifespan.
ROR vehicles are used to transport heavy equipment (e.g., bulldozers, forklifts) and oversized cargo, requiring brake shoes that can handle extreme loads and frequent braking. The 4515 Cast Brake Shoe’s superior strength and tight clearance control make it ideal for these vehicles, as it can transmit braking force efficiently without deformation. Its cast construction also resists damage from debris or rough terrain—common in construction or industrial ROR operations.
For trailers used in long-haul freight, construction, or mining, the 4515 model’s durability is a key advantage. These trailers often operate in harsh conditions (e.g., gravel roads, extreme temperatures) and require components that can withstand wear and tear. The 4515’s cast design ensures it lasts longer than standard shoes, reducing downtime for replacements. It is particularly well-suited for trailers hauling maximum-weight cargo (e.g., shipping containers, coal), where brake reliability is critical.
The 4515 uses cast iron alloy, which is denser and stronger than the stamped steel used in standard shoes. While this increases weight, it also delivers the structural rigidity needed to handle ROR/trailer loads. The added weight is a trade-off for superior durability and performance—essential for heavy-duty applications where standard shoes may fail.
The 4515 Cast Brake Shoe maintains a clearance of under 0.20mm between the shoe and drum. This tight clearance ensures that the brakes engage quickly, reducing stopping distance—critical for ROR vehicles and trailers that carry heavy loads and require responsive braking to avoid accidents.
It is optimized for heavy-duty trailers (e.g., ROR, flatbed, dump) that require high strength and tight clearance control. For light-duty trailers (e.g., utility, small cargo), the 4515’s weight and cost may be unnecessary—standard stamped shoes are more practical. We recommend assessing your trailer’s load capacity and usage before choosing the 4515 model.
