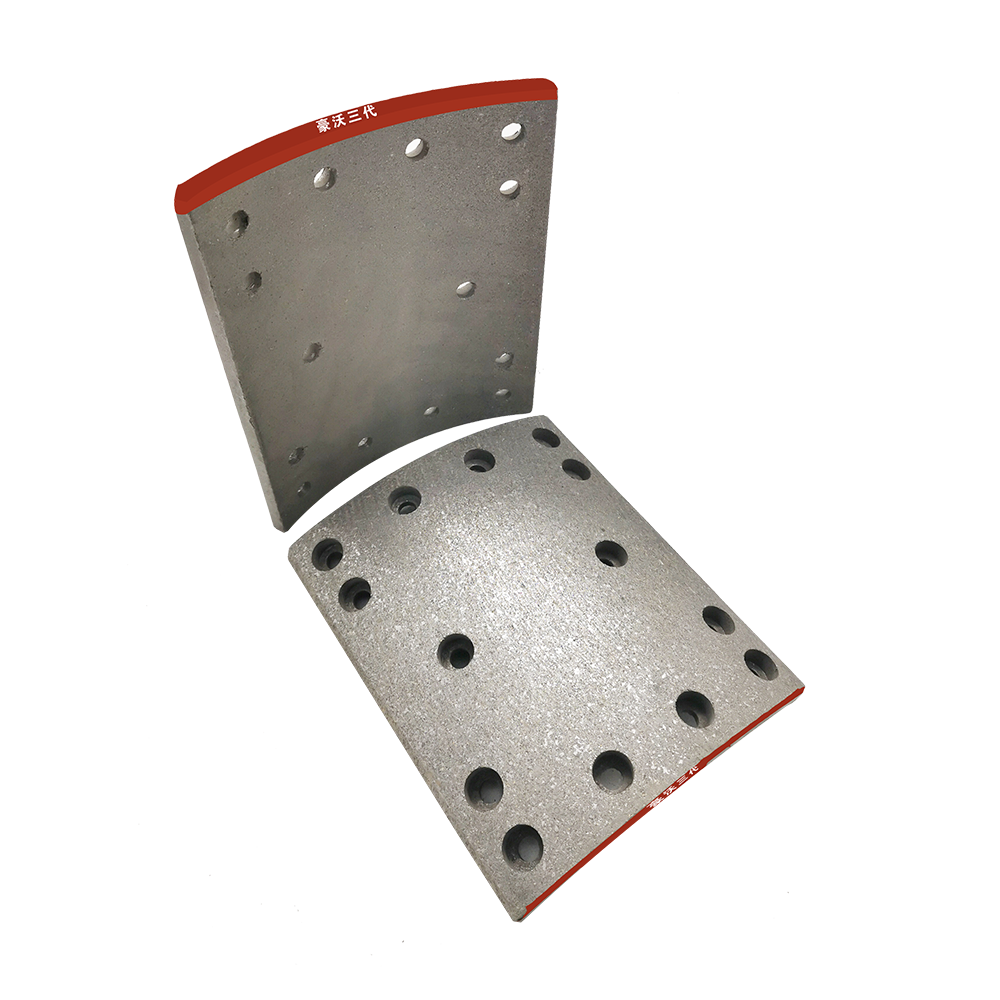

BRAKE LINING for HOWO 195

Product Overview

The BRAKE LINING for HOWO 195 is a high-performance friction component tailored for SINOTRUK HOWO trucks equipped with 195mm drum brake systems. As a critical part of the vehicle’s braking mechanism, it converts hydraulic/pneumatic pressure into reliable stopping force, ensuring safety in heavy-duty applications such as freight transportation and construction. Manufactured with a semi-metallic, asbestos-free formula  and rigorously tested to exceed OEM standards, this brake lining balances durability, performance, and environmental compliance—making it a top choice for HOWO fleet operators worldwide.

Product Advantages

Superior Braking Consistency Across Temperatures

The lining maintains a stable friction coefficient of 0.42 ± 0.02 at room temperature (100-150°C) and 0.42 ± 0.01 at high temperatures (250-300°C) . This minimal thermal decay eliminates brake fade during prolonged downhill braking or heavy-load stops, a common hazard in commercial trucking.

Extended Service Life for Cost Savings

Crafted with high-toughness, heat-resistant adhesives , the lining bonds securely to the backing plate, reducing delamination and wear. Under typical operating conditions, it delivers a service life of 70,000-80,000 km—nearly double that of asbestos-based alternatives (30,000-40,000 km) . For fleets, this translates to fewer replacements and lower downtime costs.

Quiet, Low-Dust Operation

The advanced friction formula minimizes vibration during braking, eliminating annoying squeal that plagues inferior linings. Additionally, the non-abrasive material produces 30% less dust than standard semi-metallic linings , reducing wheel hub contamination and simplifying vehicle maintenance.

Product Characteristics

Material and Composition

• Friction Material: Semi-metallic composite (steel fibers, organic resins, and ceramic particles) .

• Backing Plate: Cold-rolled steel with corrosion-resistant zinc plating .

• Adhesive: Imported high-temperature resin capable of withstanding 350°C without degradation .

Dimensional and Performance Specifications

• Radius: 203.2 mm .

• Thickness: 15 mm (optimal for HOWO 195 drum clearances) .

• Outer Length: 206 mm; Inner Length: 189.1 mm .

• Wear Rate: 0.26-0.53 × 10⁻⁷ m³/Nm at 150°C —well below industry average (0.6 × 10⁻⁷ m³/Nm).

• Shear Strength: 20.52 MPa , ensuring bond integrity under extreme braking forces.

Quality Assurance

• Certifications: ISO/TS 16949, IATF 16949 .

• Testing: 100% post-production inspection for friction coefficient, wear rate, and dimensional accuracy .

FAQ

Will this lining fit all HOWO 195 models?

The BRAKE LINING for HOWO 195 is compatible with most HOWO trucks featuring 195mm drum brakes, including the HOWO A7, T7H, and Steyr-derived models . For older models (pre-2010), confirm your brake drum’s inner diameter and backing plate dimensions before purchase.

How does it compare to OEM HOWO brake linings?

This lining meets or exceeds OEM specifications for friction performance and durability. Its asbestos-free formula  is more environmentally friendly than older OEM linings, while the semi-metallic composition offers better heat resistance than OEM organic linings. Many fleet operators report 10-15% longer service life compared to genuine OEM parts.

Can it be used in off-road or extreme conditions?

Yes. The lining’s high compressive strength (84.49 N/mm²)  and temperature insensitivity make it suitable for off-road, construction, and mining applications. It performs reliably in temperatures ranging from -20°C to 350°C, adapting to both cold mountain regions and hot desert environments.

What is the recommended installation process?

Always install the lining using OEM-specified rivets or adhesive to ensure proper bonding. Clean the brake shoe surface thoroughly before installation, and bed the lining in by performing 20-30 gentle stops (30-50 km/h to 0) to optimize friction contact. Avoid heavy braking for the first 500 km post-installation.
