Servicing drum brake systems often feels like a labor-intensive chore compared to swapping out modern disc brakes. The intricate web of springs, levers, and adjusters easily intimidates even seasoned technicians. A successful replacement demands strict adherence to the mechanical sequence. Selecting sub-par components inevitably leads to premature wear, costly comebacks, and compromised safety. Fleet mechanics, auto repair professionals, and advanced DIYers must carefully weigh total cost of ownership (TCO) against basic labor efficiency.
You will learn the systematic process for tearing down and rebuilding these assemblies safely. We will explore how to evaluate and source reliable friction materials to maximize your return on investment. Finally, we provide actionable steps to keep your vehicles out of the shop and safely on the road. Mastering these techniques transforms a frustrating repair into a predictable, highly efficient operation.
Labor vs. Parts TCO: The primary cost driver in drum brake service is labor; utilizing high-quality brake shoes mitigates the risk of rapid degradation and secondary teardowns.
Safety & Compliance: Proper teardown requires specific tools (spring pliers, retainers) and strict adherence to asbestos/dust safety protocols.
Systematic Replacement: Replacing one side at a time provides a reliable visual reference for complex spring and linkage reassembly.
Vendor Selection: Partnering with a vetted brake shoes manufacturer ensures consistent friction material performance, proper bonding, and precise fitment.
Degraded friction materials directly threaten vehicle safety. They also severely impact fleet compliance and increase operational downtime. Drivers rely on these rear systems to provide essential stopping power and stability. When components fail, the entire braking dynamic shifts forward. This forces the front disc brakes to overcompensate. Front pads will then overheat and wear out prematurely.
You must recognize the early symptoms of failure. Common warning signs include:
Grinding noises: Metal-to-metal contact occurs when friction material completely wears away.
Reduced parking brake tension: The emergency brake lever pulls up higher than usual without holding the vehicle securely.
Rear-wheel lockup: Worn return springs or separated friction linings can cause the mechanism to bind. This abruptly locks the rear wheels during light braking.
Delaying this vital service destroys the surrounding hardware. The TCO perspective highlights a harsh reality. A simple component swap quickly turns into a major overhaul if ignored. Metal rivets will gouge deep grooves into the drum. Heat buildup boils the hydraulic fluid. Ultimately, you risk blowing out the wheel cylinder seals. What started as a cheap maintenance task exponentially increases your total repair costs.
Common Mistake: Ignoring a squeaking sound under the assumption it will simply "go away." By the time squeaking turns to grinding, the drum usually requires immediate replacement rather than a simple resurfacing.
Preparation separates professional technicians from amateurs. You need specialized tools to dismantle these systems safely. Standard pliers often slip. This slippage can launch heavy-duty springs across the garage or severely injure your hands. Invest in a dedicated drum brake tool kit.
Your toolkit must include:
Spring compressors: Safely stretches and unhooks heavy return springs.
Retaining spring tools: Depresses and twists the hold-down pins in one fluid motion.
Adjuster spoons: Reaches through the backing plate to manually turn the star wheel.
Safety protocols demand your full attention. Always lift the vehicle on a level surface. Secure it using heavy-duty jack stands and wheel chocks. Never rely on a hydraulic jack alone.
Brake dust poses a severe inhalation risk. Older vehicles may still harbor asbestos fibers. Newer organic dust remains highly hazardous to your lungs. Never use compressed air to blow out the assembly. Instead, place a catch pan underneath. Spray the entire mechanism generously using a high-quality liquid brake cleaner. This traps the dust in a heavy liquid runoff.
Best Practice: Pull out your smartphone before removing a single spring. Take multiple high-resolution photos of the fully assembled unit. Capture different angles. This visual documentation serves as an invaluable blueprint when reassembly confuses you later.
Start by removing the brake drum. Drums frequently seize onto the hub hub due to rust and heat cycling. Do not smash the drum blindly with a hammer. Instead, spray penetrating oil around the center hub and wheel studs. Let it soak. Many drums feature threaded extraction holes. Thread appropriate bolts into these holes. Tighten them evenly to gently push the drum off the hub.
Once exposed, systematically detach the hardware. Use your spring tools to remove the upper return springs first. Next, detach the actuator linkage and the parking brake lever. Finally, compress and twist the hold-down springs to release the shoes from the backing plate.
Remove the old components carefully. Leave the opposite wheel completely intact. This untouched side provides a perfect, real-life 3D model if your reference photos fail to show a specific spring orientation.
Do not immediately install new parts. You must inspect the underlying hydraulic and structural elements. Locate the wheel cylinder at the top of the backing plate. Gently peel back the rubber dust boots. If hydraulic fluid drips out, the internal seals have failed. You must replace the wheel cylinder immediately.
Clean the bare backing plate thoroughly using a wire brush and cleaner. Look for the raised contact points, often called shoe pads. These spots rub against the metal frame. Apply a very light coat of high-temperature synthetic brake grease to these pads. This prevents annoying squeaks.
Evaluate the drum surface. Check for deep scoring, blue heat spots, or lip formations on the outer edge. Use a micrometer to determine if the drum is out-of-round. If the measurements fall outside factory tolerances, you must machine the drum or replace it entirely.

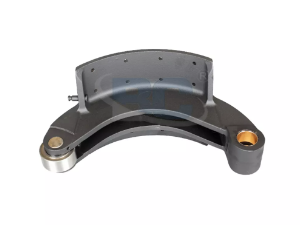

Position your new brake shoes against the backing plate. You must identify the primary and secondary units. The primary shoe always has slightly shorter friction material. It must face the front of the vehicle. The secondary shoe has longer friction material and faces the rear.
Reinstall the hardware in reverse order. Begin with the hold-down springs to secure the shoes in place. Then attach the parking brake linkage. Reattach the heavy return springs last. Take time to completely disassemble the star wheel adjuster. Clean its threads, apply anti-seize lubricant, and thread it back together smoothly. A frozen adjuster prevents the system from self-regulating as the friction material wears down.
Manually pre-adjust the star wheel until the shoes expand outward. Slide the drum on. You want to feel a light, consistent drag as you rotate the drum by hand. Once the wheel is bolted back on, perform the final adjustment through the access hole in the backing plate using your adjuster spoon.
Component selection dictates the lifespan of your repair. Fleet managers and mechanics must balance upfront costs against long-term durability. Different vehicle applications demand different friction compounds.
We can categorize friction solutions into three distinct types:
Material Type | Composition | Ideal Application | Pros & Cons |
|---|---|---|---|
Organic (NAO) | Non-asbestos organic fibers, resins, and fillers. | Light commuter vehicles, daily drivers. | Pros: Quiet, minimal drum wear. |
Semi-Metallic | Steel, iron, or copper fibers mixed with friction modifiers. | Heavy-duty fleets, towing vehicles, commercial vans. | Pros: Excellent heat dissipation, high shear strength. |
Ceramic | Ceramic fibers embedded with copper wire. | Premium passenger vehicles. | Pros: Very low dust, stable across temperature ranges. |
Construction quality matters immensely. Manufacturers attach friction material to the steel backing using two methods: riveting or bonding. Riveted parts offer superior shear strength. They excel in heavy-duty applications where intense braking forces might otherwise shear a glued lining right off the metal. Bonded parts use high-strength adhesives. They offer a larger usable friction surface and work perfectly for standard passenger cars.
Always purchase a new hardware kit. Reusing old, heat-cycled return springs compromises your entire installation. Old springs lose their tensile strength. They fail to pull the shoes away from the drum fully after you release the pedal. This causes brake drag, overheating, and rapid material degradation.
The aftermarket auto parts industry features massive variations in quality. You must separate cheap commodity parts from professional-grade components. The cheapest option usually costs you more in the long run through warranty claims and repeated labor.
A reliable brake shoes manufacturer holds internationally recognized certifications. Look specifically for ISO/TS 16949 compliance. This certification guarantees strict quality control, standardized batch testing, and rigorous shear strength evaluations. Factories adhering to these standards drastically reduce the defect rate of out-of-box components.
For independent shops and fleet managers, supply chain scalability proves critical. You need a manufacturer who provides exceptional catalog coverage. They must maintain high fill rates so you are not left waiting for backordered parts. Favorable warranty terms further protect your bottom line.
Evaluate your Return on Investment (ROI) drivers carefully. Below is a simplified chart detailing the financial impact of choosing premium manufacturers over unvetted suppliers.
Cost Factor | Premium Manufacturer | Unvetted Commodity Supplier |
|---|---|---|
Upfront Unit Cost | Moderate to High | Very Low |
Out-of-Box Defect Rate | < 1% | 5% - 10% |
Expected Lifespan | 40,000 - 60,000 miles | 15,000 - 25,000 miles |
Labor Cost for Comebacks | Minimal (rarely required) | High (frequent re-repairs) |
Balancing these ROI drivers ensures your bays remain profitable. You reduce shop bottlenecks when technicians rarely have to perform a job twice.
Replacing these components requires a delicate balance of mechanical precision and informed purchasing. Your labor efficiency depends entirely on your preparation and respect for the mechanical sequence. A systematic teardown prevents dangerous mistakes and keeps your shop profitable.
Follow these actionable next steps:
Audit your suppliers: Standardize your shop operations by sourcing friction materials that meet exact OEM specifications.
Equip your technicians: Ensure every mechanic has access to specialized spring tools to prevent injuries and hardware damage.
Implement hardware mandates: Create a strict shop policy that mandates the installation of new spring kits with every friction material replacement.
Review technical specs: Match the friction compound (organic vs. semi-metallic) directly to the specific weight and use-case of the fleet vehicle.
Quality installations breed customer trust. Do not cut corners on components that dictate a vehicle's stopping power.
A: A professional mechanic typically completes both rear wheels in 1.5 to 2 hours, assuming the drums easily slide off. Advanced DIYers should allocate 3 to 4 hours. If the drums require machining (turning) at a lathe, add another 45 minutes to the total job time.
A: Yes, it is highly recommended. The old friction material creates a unique wear pattern on the drum. If you skip machining or replacing it, the new flat shoes will barely touch the grooved drum surface. This drastically reduces stopping power and causes premature, uneven wear.
A: No. Hydraulic bleeding is only required if you open the sealed fluid system. As long as you do not replace the wheel cylinders or accidentally pop the pistons out of their housing during teardown, the brake fluid remains entirely unaffected.
A: Visual cues include heavy rust, stretched coils, or discolored metal from extreme heat. However, heat fatigue is often invisible. Replacing the hardware kit simultaneously is incredibly cheap. Skipping this step risks severe brake drag, making it a poor cost-saving decision.
