How To Measure Brake Shoes

Fleets and independent repair shops face a recurring challenge. Ordering the wrong replacement brake components leads to extended vehicle downtime. It severely compromises road safety and wastes expensive technician hours. The reality of brake shoes sizing is quite rigid. It relies on specific, unforgiving dimensions. The two most critical are the brake drum's internal diameter and the friction width. You cannot simply guess these measurements from the outside of the wheel.

We wrote this guide to eliminate the guesswork. We provide a definitive, step-by-step standard operating procedure (SOP). You will learn exactly how to measure wear limits accurately. We will teach you how to determine precise replacement sizes. Finally, we help you evaluate an important purchasing decision. You will know when to buy bare replacement parts versus full assemblies from a reliable supplier.

Key Takeaways

• Zero Shortcuts: You must remove the wheel and the brake drum to measure brake shoes accurately; external visual inspections are invalid.

• Drum Dictates Shoe: The required size of your replacement brake shoes is determined by measuring the *inside diameter* of the corresponding brake drum.

• Thickness Matters: When evaluating wear, measure only the friction lining material, strictly excluding the metal backing plate.

• TCO Consideration: In many maintenance scenarios, upgrading to a complete brake assembly offers a better ROI in labor savings than replacing standalone brake shoes.

The Reality Check: Required Tools and Teardown Protocols

Commercial maintenance operations require strict safety standards. Heavy-duty vehicle repairs involve incredibly heavy metal components. A standard commercial brake drum easily weighs 50 to over 100 pounds. Furthermore, older friction linings often harbor hazardous dust particles. Mechanics must treat this dust cautiously. Modern linings use semi-metallic or ceramic compounds. However, older vehicles might still contain dangerous materials. Your safety and precision remain completely non-negotiable here.

Novice mechanics frequently make a dangerous assumption. They believe they can estimate wear without dismantling the wheel hub. We must debunk this "no-teardown" myth completely. You cannot determine accurate dimensions visually. Inspection holes only provide a limited, often misleading view. You must fully remove the wheel assembly. This process typically demands 19mm or 21mm deep sockets. Only then can you peel back the heavy drum casing. Old drums often develop thick rust ridges. These ridges catch the components during removal. You might need to back off the slack adjuster first.

Here is your required measurement toolkit:

• Dedicated brake drum micrometer

• High-precision digital calipers

• Heavy-duty jack stands rated for commercial weights

• Impact gun and corresponding lug wrenches

• Proper PPE (safety glasses, N95 dust mask, heavy gloves)

• Penetrating fluid for rusted hub assemblies

• A dead-blow hammer for loosening seized components

We must also issue a critical environmental warning. Never inspect brake components immediately after driving. Friction generates extreme heat during normal operation. This heat creates intense thermal expansion within the metal. Thermal expansion temporarily alters the drum's structural properties. It heavily skews your sensitive micrometer readings. Hot metal also poses severe burn risks to technicians. Always let the vehicle cool entirely before starting your inspection.

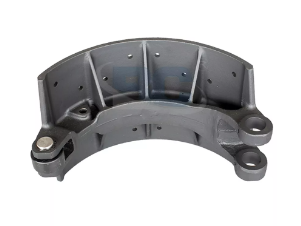

Step-by-Step SOP: How to Measure Brake Shoes for Replacement Size

When you purchase replacement friction components, you must know exact dimensions. You are actually measuring the iron drum and the mating surface. The drum directly dictates the correct size. Follow this standard operating procedure to get flawless measurements every time.

Step 1: Measure the Drum's Inside Diameter (ID)

Grab your specialized brake drum micrometer. Place it inside the inner friction surface of the drum. Expand the tool until both anvils touch the opposing walls firmly. Read the measurement carefully on the dial or digital screen. This exact measurement directly dictates your required part size. Common commercial sizes include 10-inch, 12-inch, or 16.5-inch diameters. A 16.5-inch drum needs a corresponding 16.5-inch shoe curvature. You cannot force a mismatched curvature to fit.

Step 2: Measure the Friction Surface Width

Next, evaluate the physical width. Measure the flat width of the old friction material using calipers. Alternatively, measure the flat contact path inside the drum. This dimension ensures the new part matches the wheel cylinder perfectly. Common commercial widths range between 7 and 8 inches. Using an incorrect width causes severe, uneven wear. It might also damage the internal hardware assembly. It reduces your total braking power significantly.

Step 3: Check Roundness and Tolerances

You must check the drum for warping. Measure the internal diameter at multiple intersecting points. First, measure at a vertical 12 o'clock angle. Next, measure horizontally at 3 o'clock. Compare the two readings carefully. A deviation exceeding 0.015 inches indicates severe warping. Heat cycling and panic braking cause this distortion over time. You must replace warped drums immediately. Putting new components in a warped drum guarantees premature failure. The irregular surface destroys the fresh lining rapidly.

Minimum Thickness Standards: Evaluating Shoe Wear Limits

Mechanics must determine if existing parts actually need replacing. You evaluate wear based on strict compliance and safety thresholds. Do not rely on subjective feelings. Rely on hard, measurable data. Government agencies enforce these limits strictly during roadside inspections.

You must follow one absolute measurement rule. Place your calipers strictly on the friction lining material. Do not include the metal base in your calculation. Do not include the metal rivets. Measuring the backing plate inflates your numbers artificially. This amateur mistake keeps dangerous, non-compliant vehicles on the road.

Heavy-duty commercial trucks follow specific benchmark limits. The Department of Transportation enforces these rules strictly. Understanding these limits prevents costly fines and unexpected downtime.

We offer one piece of actionable advice here. Do not wait for the absolute minimum limit. Suppose your measurements fall within 1 to 2 millimeters of the legal boundary. Proactively replace them now. Routine maintenance schedules often span several months. Leaving heavily worn parts installed risks a failure before the next service. Proactive replacement maximizes fleet uptime. It ensures your drivers remain safe during steep descents.

TCO Analysis: Replacing Bare Brake Shoes vs. Full Brake Assemblies

Once you confirm your measurements, buyers face another major decision. You must decide whether to buy bare friction parts or full assemblies. This bottom-of-funnel decision framework heavily impacts your overall shop profitability.

Bare shoes carry massive hidden labor costs. Technicians spend hours stripping out old hardware. They battle rusted, seized springs constantly. They must carefully clean and lubricate old backing plates. They must press new pins and reattach tension springs manually. These tedious, frustrating tasks eat up expensive bay-time. Technician morale also suffers when fighting heavily rusted components.

Purchasing a pre-loaded brake assembly changes the equation entirely. A complete assembly includes the backing plate, friction material, wheel cylinder, and springs. The initial parts cost sits marginally higher than bare components. However, it heavily reduces your direct labor expenses. It cuts total bay-time in half. Technicians simply bolt the new assembly onto the axle. They bleed the new wheel cylinder and move on.

Let us look at a Total Cost of Ownership (TCO) comparison chart.

New assemblies also introduce a massive reliability factor. You eliminate the risk of reusing fatigued hardware entirely. Old springs lose their tension over time due to heat cycles. A snapped return spring can destroy your newly installed components instantly. It can lock up a wheel while driving. Rebuilding everything from scratch rarely makes financial sense anymore.

Sourcing Strategy: Evaluating a Brake Shoes Manufacturer

Choosing where to buy matters deeply. This holds especially true for fleets, B2B buyers, or high-volume repair shops. You must evaluate your suppliers rigorously. Knowing what size to buy solves only half the puzzle. Procurement strategy dictates your long-term success.

First, inspect their material quality and manufacturing consistency. Look for partners who provide clear friction-coefficient ratings. Heavy-duty applications require specific heat-dissipation properties. High-quality suppliers use standardized bonding and riveting processes. Poorly bonded linings will shear off under heavy braking loads. This structural failure causes catastrophic stopping inability. Premium materials resist brake fade during long downhill grades.

Second, verify their regulatory compliance and safety certifications. Ensure your chosen brake shoes manufacturer adheres to strict industry standards. In the United States, look for FMVSS 121 compliance. This Federal Motor Vehicle Safety Standard governs air brake systems specifically. European buyers should demand ECE R90 certifications. Never purchase uncertified aftermarket friction materials. Cheap knock-offs expose your business to massive legal liabilities.

Finally, evaluate their supply chain capabilities and warranty coverage. Long lead times ruin tight fleet schedules. Ensure they offer reliable bulk availability year-round. Ask about their defect warranty coverage explicitly. A strong warranty protects your fleet's overall uptime. Reliable manufacturers stand behind their engineering confidently. They replace defective units without administrative friction. Partnering with a proven supplier reduces your total procurement stress.

Conclusion

Accurate component measurement bridges a critical maintenance gap. It connects diagnosing a mechanical problem directly to procuring the correct solution. Rely strictly on the drum's internal diameter for accurate sizing. Measure only the lining thickness to evaluate functional wear.

Follow these action-oriented next steps to ensure fleet safety. Cross-reference your fresh caliper measurements against official OEM specifications carefully. Weigh the labor ROI of purchasing full assemblies for your shop. Finally, source your parts from vetted, fully compliant manufacturers. Precision keeps your vehicles safe and your business highly profitable.

FAQ

Q: Can I figure out my brake shoe size without removing the wheel?

A: No. You can sometimes look up general specifications via your vehicle identification number (VIN). However, aftermarket modifications or differing axle options occur frequently. Physical measurement of the drum's inner diameter remains the only completely accurate method. You must remove the wheel and drum to measure the internal components directly.

Q: What if the brake drum is rusted and stuck when trying to measure?

A: Apply a high-quality penetrating fluid directly on the hub center. Next, back off the brake adjuster to retract the internal shoes. Gently tap the outer drum edge using a dead-blow hammer. This breaks the rust bond loose. Never force it off violently. You may severely damage the backing plate.

Q: Does the brake shoe size equal the exact diameter of the drum?

A: Nominally, yes. Suppose you measure a 10-inch inside diameter on the drum. You require a 10-inch replacement kit. The part's actual physical arc is precisely engineered. It matches that specific drum dimension perfectly. Mixing mismatched curvatures causes uneven wear and dangerous braking failures.
