Which Component Keeps The Linings Close To The Brake Drum

Ever wonder exactly which component maintains the vital micro-gap inside a drum brake setup? In commercial vehicles, precise distance between friction materials and the rotating drum dictates safe stopping power. When this clearance drifts out of specification, braking efficiency plummets immediately. The brake adjuster primarily keeps the friction material close to the brake drum as wear occurs over time. Mechanics frequently misdiagnose stopping issues. They often blame the friction material itself. However, the root cause usually lies inside the clearance control hardware. Understanding this mechanical relationship saves time and valuable resources.

In heavy-duty air systems, we call this the automatic slack adjuster. Hydraulic systems rely on a star-wheel adjuster instead. Secondary hardware plays an equally critical role. Hold-down springs keep the shoe properly aligned against the backing plate. Return springs pull the shoe back after a stop. They rely completely on the adjuster to set their correct resting distance.

Improperly adjusted clearance hardware leads to severe commercial consequences. It causes premature friction wear and dangerous stopping distances. It also drives up fleet maintenance burdens significantly. This article serves as a comprehensive technical evaluation guide. You will learn to diagnose clearance hardware issues efficiently. We will also help you select optimal replacement kits to ensure peak stopping performance safely.

Key Takeaways

• The Adjuster Mechanism: Slack adjusters or star-wheel mechanisms automatically compensate for friction material wear, maintaining optimal shoe-to-drum clearance.

• Hardware Synergy: High-quality Brake Linings will still fail prematurely if paired with fatigued hold-down springs or seized adjusters.

• Procurement Standard: When replacing brake shoes, always evaluate the complete hardware kit (springs, pins, rollers) rather than just the friction material to ensure FMVSS compliance and predictable lifecycle costs.

• Diagnostic Trigger: Excessive brake pedal travel, uneven lining wear, or dragging brakes usually indicate a failure in the adjuster or return mechanisms, not just the brake linings.

The System Architecture: Components Controlling Shoe-to-Drum Clearance

Proper brake application depends on maintaining a microscopic gap. The friction surface must sit just millimeters away from the drum. If they sit too far apart, you experience dangerous application lag. If they sit too close, the brakes drag continually. We rely on a specific ecosystem of parts to control this clearance reliably.

1. The Slack Adjuster (Heavy-Duty Air Brakes): Air brakes use an automatic slack adjuster (ASA). It senses camshaft rotation during each stop. As the Brake Linings wear down naturally, the ASA micro-adjusts the S-cam resting position. This pushes the shoes slightly outward. It keeps the friction material close to the drum automatically. The ASA acts as the mechanical brain. It translates linear pushrod motion into rotational force. By ratcheting forward slightly, it eliminates excess free play. This maintains a consistent pedal feel for the driver.

2. The Star-Wheel Adjuster (Light/Medium Duty Hydraulic): Hydraulic drum setups use a star-wheel adjuster. It features a simple self-adjusting lever mechanism. When you apply the brakes in reverse, the lever catches the star wheel teeth. It expands the resting diameter of the brake shoes progressively.

3. Hold-Down Springs & Pins: These secure the shoe firmly to the backing plate. They prevent lateral vibration during transit. They also ensure the friction surface remains perfectly parallel to the drum surface. They must resist immense lateral forces to stop the shoes from twisting inside the drum.

4. Return Springs: They pull the shoe away from the drum after a brake application. They bring the shoe back until it hits the limit set by the adjuster mechanism.

The architecture operates as a synchronized unit. If one piece loses tension, the whole mechanism suffers. Maintaining these parts guarantees safe operation under heavy loads.

How Hardware Degradation Accelerates Brake Lining Wear

Small hardware failures create massive secondary issues over time. Many fleets ignore small springs or adjusters during a standard brake job. This implementation reality carries heavy risks. Failing to replace inexpensive parts triggers a cascade of severe mechanical failures. Small springs lose tension, and metal fatigues under severe thermal stress.

Consider what happens when an adjuster seizes. This represents the dangerous "too far" risk. A seized adjuster stops advancing the shoe outward as the friction wears. The air chamber actuator must extend further to make contact. Eventually, it exceeds its safe stroke limit. Actuator stroke limits are strictly enforced by authorities. A standard Type 30 brake chamber allows a specific maximum stroke, often around two inches. Exceeding this limit by even a fraction of an inch puts a commercial truck out of service immediately. You lose critical braking force. You also face hefty fines and delayed freight.

Next, look at fatigued return springs. We consider this the "too close" risk. Old springs lose their tensile strength over time. Weak springs cannot retract the shoe fully. This forces the Brake Linings to drag continuously against the spinning drum.

Dragging friction materials generate extreme temperatures quickly. This heat causes thermal glazing on the friction surface. Glazing acts like a polished mirror. It removes all friction coefficient from the shoe. It hardens the material and destroys its stopping ability entirely. Extreme heat also causes heat-checking in the metal brake drum. You will see these micro-cracks form along the friction face. They compromise the drum's structural integrity. Ultimately, a cheap spring failure requires a full system replacement.

Best Practices: Always replace small hardware during every friction reline to guarantee system synergy.

Common Mistakes: Technicians often reuse old return springs simply because they visually look intact.

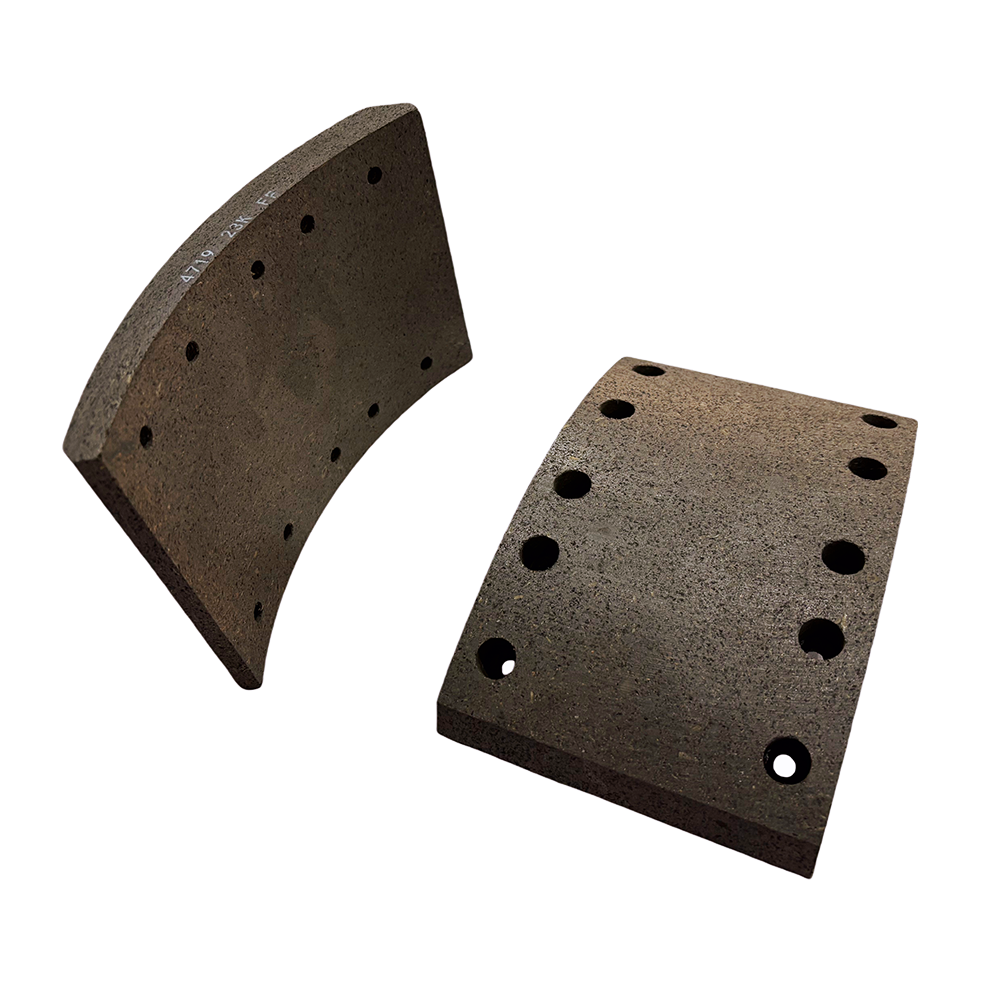

Evaluating Brake Linings and Replacement Hardware Kits

You must differentiate between standard aftermarket parts and OEM-grade commercial solutions. High-quality friction materials require equally robust hardware. Mismatched components often lead to uneven braking performance across axles.

Choosing the right friction material depends on several variables. You must evaluate options based on your Gross Vehicle Weight Rating (GVWR). Operating environments also dictate the exact friction coefficient you need. Standard formulations work well for highway cruising on flat terrain. Severe-duty formulations handle frequent stops or mountainous terrain better. They resist brake fade at much higher operating temperatures. Friction blocks utilize varying chemical compositions. You might choose semi-metallic, ceramic, or specialized organic blends. High-grade semi-metallic blocks dissipate heat rapidly. They pair excellently with heavy-duty adjusters.

Buyers should always insist on comprehensive hardware kits. A complete kit contains new adjusters, return springs, hold-down pins, and rollers. Reusing old, heat-cycled metal components invites premature failure. Heat cycling fundamentally alters the metallurgy of springs. It destroys their tension coefficients permanently. A spring might look perfect but hold only half its original tension.

Compliance and certification matter greatly in commercial applications. You must ensure your selected friction components and hardware meet strict industry standards. For heavy-duty pneumatic systems, FMVSS 121 compliance is non-negotiable. This federal standard dictates minimum stopping distances for commercial vehicles. Certified components minimize corporate liability during an accident investigation. They also guarantee predictable stopping performance for your drivers.

Inspection Criteria: When to Replace Brake Linings and Clearance Hardware

Technicians need an actionable evaluation framework to maintain safety. Objective assessment prevents unnecessary maintenance while ensuring road compliance. You must inspect these components at regular preventive maintenance intervals.

First, check the continuous thickness of the friction block. Commercial and DOT minimums provide strict legal guidelines. For heavy-duty air brakes, the legal minimum threshold is typically 1/4 inch of continuous thickness. Do not let Brake Linings wear beyond this specific point. Thinner materials cannot absorb and dissipate heat effectively. They will crack under heavy load.

Next, learn to read the brake shoe accurately. Uneven wear patterns tell a specific diagnostic story. Tapered wear usually indicates a binding anchor pin. The shoe cannot pivot smoothly against the drum. Aggressive wear isolated to the leading shoe points to a failing adjuster mechanism. It means one shoe is doing all the work.

When inspecting for out-of-round drums, use a feeler gauge. Slide it around the entire circumference between the shoe and the drum. Inconsistent gaps indicate a warped drum. A warped drum will constantly kick the shoe back. This action breaks the adjuster mechanism over time. Look closely at the anchor pin holes on the shoe web. Elongated holes mean the shoe is shifting violently during stops.

Finally, test the spring tension meticulously. Visual cues offer reliable indicators of severe spring fatigue. Look for stretching between the individual coils. Rust, pitting, or scoring also mandate immediate replacement. Corrosion creates weak points where the spring will snap. You must protect the new friction blocks from dragging damage caused by weak springs.

Best Practices: Use a dedicated brake gauge tool to measure remaining thickness objectively.

Common Mistakes: Relying solely on visual estimates through the dust shield window often leads to premature failure.

Best Practices for Installation and Final Clearance Adjustment

Transitioning from evaluation to successful deployment requires precise execution. Proper installation protects your investment in new components. It also maximizes the lifecycle of your newly installed friction materials.

Begin by setting the initial gap correctly. You must properly back off the adjuster to fit the new, thicker shoes. Once installed, set the initial clearance using a feeler gauge. Follow standard manual adjustment protocols before the automatic systems take over. This manual step gives the automatic slack adjuster a correct operational baseline. If you skip this, the adjuster may never catch up to the proper clearance.

Strict lubrication protocols prevent mechanical binding. Apply high-temp anti-seize exclusively to metal-to-metal contact points. These specific points include S-cam rollers and anchor pins. However, you must ensure zero contamination of the friction surfaces. Even a tiny fingerprint of grease will ruin the stopping coefficient. Grease causes the brake to grab aggressively or slip entirely.

Finally, burnish the brakes before placing the vehicle back into service. Burnishing requires a specific bed-in procedure. It mates the new Brake Linings perfectly to the drum curvature. This process establishes the initial friction transfer layer on the drum face. It also verifies adjuster function under actual thermal load.

For burnishing, execute a series of controlled stops. Perform roughly ten snubs from 40 mph down to 20 mph. Apply steady, moderate pressure. Do not come to a complete stop during these snubs. Let the drums cool for a mile between applications. This gentle heating bakes the resins in the block. It prevents premature cracking and establishes a perfect mating surface.

Conclusion

Successful brake maintenance requires looking beyond the friction surface. The adjuster mechanism keeps the clearance tight, but it cannot work alone. You must maintain the entire assembly properly to ensure reliable stopping power.

• Treat the brake assembly as an interconnected ecosystem where springs, adjusters, and shoes share the workload equally.

• Source fully matched hardware kits from verified suppliers rather than performing partial replacements.

• Implement strict diagnostic routines to catch dragging shoes or over-stroking actuators early.

• Always perform a precise manual adjustment and burnishing procedure to set the baseline for automatic adjusters.

Procurement teams must view partial brake jobs as a false economy. Investing in complete clearance hardware alongside your friction replacements guarantees optimal stopping power and maximum service life.

FAQ

Q: What happens if the brake shoe return spring breaks?

A: The shoe will drag against the drum continuously. This constant contact generates extreme heat, causing the friction materials to overheat and glaze. Glazing destroys the friction coefficient. Ultimately, the component will fail prematurely, requiring a complete replacement of the drum and hardware.

Q: How close should brake linings be to the drum?

A: Clearance varies slightly by specific system design. Generally, the resting gap ranges from 0.010 to 0.030 inches. Automatic slack adjusters or star-wheel mechanisms regulate this micro-gap precisely. They advance the shoe resting position incrementally as the friction surface wears down over time.

Q: Can I replace brake linings without replacing the hardware?

A: We highly discourage this practice. Heat-cycled springs lose their critical tension over time. Worn adjusters will fail to maintain the proper gap. Reusing old hardware will immediately compromise the lifespan and safety of your newly installed friction components. Always install a complete kit.

Q: What causes brake linings to wear unevenly?

A: Several mechanical failures cause uneven wear. Binding hardware or seized anchor pins prevent smooth shoe movement. A seized adjuster forces one shoe to handle the entire braking load. Additionally, an out-of-round brake drum fails to maintain consistent clearance, severely accelerating localized wear.
