Rebuilding obsolete or custom brake shoes often requires bonding new friction material to the bare metal. You face this specialized task when OEM replacements vanish from the market entirely. It also becomes necessary when upgrading classic car or motorcycle braking systems for modern road safety. We must treat brake shoe bonding as a life-safety critical process. Failure under high shear stress or severe thermal load results in a catastrophic loss of braking power. You cannot afford shortcuts here. The stakes are simply too high for anyone driving the vehicle. This article provides a transparent, engineering-based framework for reliable brake shoe restoration. You will evaluate bonding versus riveting to choose the smartest approach for your specific build. We will guide you in selecting the correct industrial adhesives instead of relying on weak consumer glues. You will also learn how to execute the thermal curing process to exact OEM-level safety standards.
Bonding vs. Riveting: Bonding offers 100% surface contact and extends the usable life of the lining, but requires strict adherence to thermal curing protocols compared to the mechanical simplicity of riveting.
Adhesive Selection: Standard consumer epoxies will fail under braking heat. Industrial nitrile-phenolic adhesives (e.g., Pliobond 30) are the baseline requirement.
Surface Preparation: 90% of bonding failures stem from inadequate shoe preparation. Media blasting to bare metal and chemical degreasing are non-negotiable.
Curing Variables: Success dictates precisely managing clamping pressure and temperature ramps (typically 300°F–400°F) to properly cross-link the adhesive without degrading the friction material.
When restoring a vehicle, you must decide how to attach the friction material to the bare metal shoe. This decision impacts stopping power, maintenance intervals, and overall safety. Performance and surface area matter immensely in dynamic braking systems. Bonded brake components utilize the entire surface area for shear strength. The adhesive distributes stopping forces evenly across the entire metal arc. Rivets do the exact opposite. They concentrate all mechanical stress at localized mounting holes. This focused stress can cause micro-fractures in brittle friction compounds under severe deceleration.
Wear limits also differ heavily between the two attachment methods. Bonded linings can wear down much closer to the metal shoe. You gain a significantly longer usable lifespan. Riveted setups carry a hidden danger as they wear down over time. If you push them too far, the metal rivet heads will contact the cast iron brake drum. They score deep grooves into the drum surface. This friction damage ruins expensive and sometimes irreplaceable vintage drums.
Implementation realities dictate which method suits your specific workshop capabilities. Riveting is decidedly faster. It requires far less specialized equipment. A drill press and a sturdy hand riveter often suffice. You can mechanically verify a good rivet with a quick visual check. It remains ideal for heavy-duty commercial truck applications. It also suits historically accurate antique restorations where judges look for period-correct details.
Bonding delivers superior heat transfer and immense holding power. It prevents moisture from getting between the friction pad and the shoe, thus stopping hidden rust. However, it demands precise temperature control. You need dedicated curing ovens and specialized clamping jigs to succeed. Replacing Brake Linings correctly means understanding these trade-offs completely.
Feature | Bonding (Gluing) | Riveting |
|---|---|---|
Surface Area Contact | 100% distribution | Localized at rivet holes |
Drum Scoring Risk | Very Low | High at extreme wear limits |
Equipment Requirements | High (Ovens, specialized jigs) | Low (Drill press, riveter tool) |
Ideal Application Focus | Motorcycles, Custom builds, Modern cars | Heavy commercial, Antique restorations |
Choosing the proper chemical agent makes or breaks your restoration project. Standard consumer epoxies will fail under intense braking heat. You must understand the strict chemical requirements before buying anything. Consumer-grade adhesives like standard epoxies or cyanoacrylates cannot handle thermal shock. They quickly exceed their glass transition temperature (Tg) during heavy braking events. Once they pass this thermal threshold, the glue softens rapidly and turns rubbery. Shear forces then rip the friction material clean off the shoe.
Industry-standard formulations solve this dangerous problem entirely. Aerospace and automotive engineers rely on thermosetting phenolic resins and nitrile-phenolic blends. These liquids are not simple glues. They are heat-activated chemical compounds. They form an irreversible, cross-linked molecular matrix when baked in an oven. You must look for specific product benchmarks before purchasing.
Temperature Resistance: The compound must withstand continuous operating temperatures of 400°F or more. It also needs to survive peak heat spikes exceeding 500°F safely.
Shear Strength Metrics: Automotive shear loads require massive strength. Select adhesives that meet minimum PSI requirements, usually rated above 1000 PSI under laboratory shear testing.
Proven Formulations: Utilize established industry examples like Pliobond 30 or equivalent aerospace-grade brake adhesives.
Shelf life and proper storage present another major hurdle. Specialized brake adhesives have notoriously limited shelf lives. You must warn your workshop team about proper storage protocols. Keep these chemical cans in climate-controlled environments exclusively. Ambient heat causes premature cross-linking inside the sealed can. This thickens the resin and destroys its bonding capability before you even apply it.
Best Practice: Always write the opening date on the can lid using a permanent marker. Discard any adhesive immediately if it feels unusually thick, lumpy, or stringy.
Most novices blame the adhesive when a pad flies off during a drive. In reality, 90% of bonding failures stem from inadequate shoe preparation. You cannot skip or rush these steps. Shoe inspection and trueing must always come first. Assess the bare brake shoe closely for any warping or twisting. Use a metal feeler gauge to check the radius match between the metal shoe and the new friction pad. A poor match creates hidden air voids. Even the best industrial adhesives cannot bridge these gaps safely under pressure.
Mechanical cleaning establishes the absolute foundation. You must strip the shoe completely down to bare steel. Media blasting using aluminum oxide or heavy sand is an absolute requirement. Hand sanding or wire brushes are simply not aggressive enough. Blast the entire bonding surface to a bright, white-metal finish. This aggressive profile creates a mechanical "tooth." The liquid adhesive seeps deeply into these microscopic peaks and valleys for maximum structural grip.
Chemical degreasing removes invisible contaminants left behind. Specify the use of non-residue solvents like pure acetone or methyl ethyl ketone (MEK). We must warn you explicitly against using standard parts-washer fluids. Never use cheap, petroleum-based brake cleaners for this critical step. They leave oily micro-films behind on the metal. These invisible films repel the adhesive and guarantee a catastrophic shear failure later on.

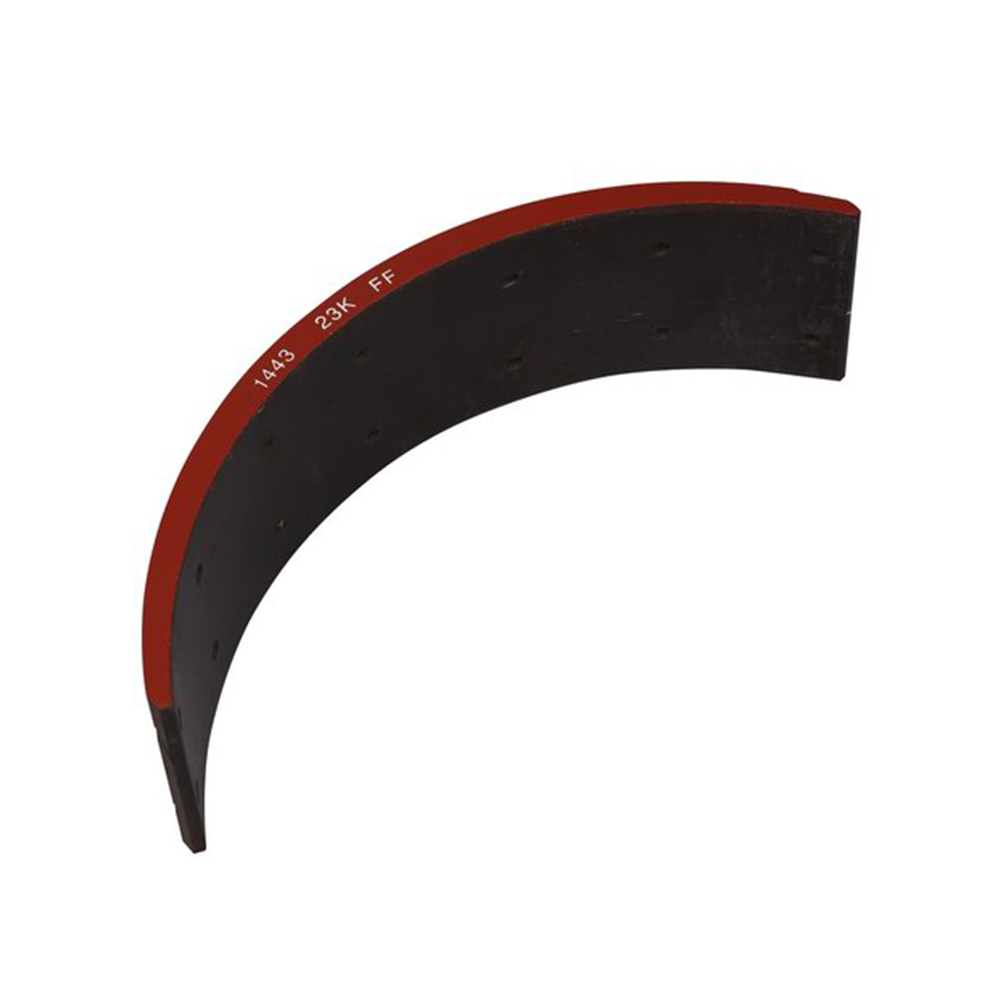

Time sensitivity plays a massive role right after cleaning. Emphasize the urgent need to apply your adhesive immediately after preparation. Bare, blasted metal begins to flash-rust within minutes, especially in humid garage environments. Rust compromises the bond integrity between the metal and your newly sourced Brake Linings instantly. Apply your first protective coat before any oxidation occurs.
We now move to the actual assembly phase. Precision and patience define this stage of the work. Adhesive application requires an even, highly controlled touch. Outline the recommended coating method for your specific chemical product. Brushing works well for small, careful batches. Spraying delivers a much more uniform coat for high-volume production work. Apply the resin smoothly to both the bare shoe and the back of the Brake Linings.
You must let the strong solvents flash off completely. Air drying is essential before you mate the two surfaces together. They must feel slightly tacky to the touch. Mating wet surfaces traps highly volatile solvents inside the closed joint. These trapped solvents will boil later during the bake cycle and destroy the joint.
Clamping and pressure application follow the air-dry phase. You must apply even, continuous pressure across the entire arc of the shoe. If pressure drops at the edges, the pad will lift during curing. Discuss tooling options carefully before starting. Specialized brake bonding jigs offer the most reliable, repeatable results. They utilize adjustable steel bands to press the pad inward perfectly. If you lack these jigs, heavy-duty steel banding or industrial hose clamps can work. Target a clamping pressure of 100 to 200 PSI depending strictly on your specific adhesive's technical data sheet.
The heat curing curve finalizes the chemical reaction. You cannot rush this high-temperature bake.
Detail a standard thermal ramp-up. Bring the temperature up gradually to prevent solvent popping. Rapid heat causes trapped gases to boil rapidly, blowing physical holes in the glue line.
Provide typical curing parameters. Most thermoset phenolic adhesives require baking at 350°F to 400°F.
Hold this peak temperature steadily for 45 to 60 minutes to ensure full cross-linking.
Cool the heavy assembly slowly to room temperature while it remains fully clamped to prevent thermal shock.
Risk Warning: Do not ever use domestic food ovens. Baking these industrial resins causes severe, toxic off-gassing. You must use a dedicated, properly ventilated curing oven situated safely away from living spaces.
Your job is not done when the hot parts finally cool. You must verify the chemical bond integrity before installing them on any vehicle. Visual inspection offers the very first clue. Check for uniform adhesive squeeze-out along the lateral edges. A consistent, thin bead of hardened resin indicates you applied proper pressure and adequate coverage. Dry spots suggest poor clamping pressure or insufficient glue application.
Acoustic tap testing reveals dangerous hidden flaws. Lightly tap the bonded friction material with a small, lightweight wooden or plastic mallet. Listen closely to the resulting sound. A sharp, high-pitched ring indicates a solid, unified bond across the metal. A dull, hollow thud indicates a dangerous void hiding underneath. Reject any shoe immediately that fails the acoustic tap test.
Destructive testing provides ultimate confidence for high-volume rebuilders. Commercial shops periodically sacrifice a fully bonded shoe. They place it in a hydraulic shear-testing press and push until it finally breaks. They verify process integrity by ensuring the friction material tears apart before the glue line actually fails.
Final finishing ensures smooth, predictable vehicle operation. Trim away any excess adhesive squeeze-out using a sharp metal file. Chamfer the leading and trailing edges of the friction lining. A steep 45-degree bevel prevents the pad from grabbing the drum aggressively during light stops. Finally, mount the assembly on a dedicated brake lathe to arc the shoes. Match the outer diameter of the pads precisely to the inner diameter of your specific brake drum.
Successful bonding relies entirely on strict, methodical execution from start to finish. Your chemical selection, precise surface prep, and exact thermal curing dictate the final outcome. Cutting corners in this process guarantees catastrophic failure on the road. Take time to evaluate your workshop capabilities honestly before starting.
Proper execution demands specialized tools. Source dedicated curing ovens and strong clamping jigs before you begin. If exact temperature control is unavailable, pause your project immediately. We strongly advise outsourcing the core shoes to a specialized commercial brake relining facility instead. They guarantee absolute safety and strict compliance for critical braking components. Follow these technical steps carefully to ensure reliable, fade-free stops on every single drive.
A: No. Consumer epoxies like JB Weld fail quickly under high braking temperatures. They easily exceed their glass transition temperature, leading to severe thermal degradation. This results in sudden shear failure and a complete, catastrophic loss of braking power. Always use industrial nitrile-phenolic adhesives designed specifically for brake components.
A: Brake bonding relies entirely on a heat-activated thermoset process. It does not cure at room temperature over time. You must bake the clamped assembly in a dedicated, ventilated oven at 350°F to 400°F for 45 to 60 minutes to achieve a safe, cross-linked molecular bond.
A: Yes. Arcing shapes the new friction material to perfectly match the internal radius of your specific brake drum. This ensures maximum surface contact immediately upon installation. Without arcing, you risk poor stopping power, localized overheating, and a dangerously spongy pedal feel.
A: High-quality phenolic adhesives generally withstand continuous operating temperatures up to 400°F. They can also survive brief thermal spikes above 500°F safely. However, the friction material itself will usually experience severe brake fade long before the adhesive reaches its absolute thermal failure point.
