Quick Answer Brake linings and brake pads are critical friction materials used in heavy-duty vehicle braking systems, but they operate using fundamentally different mechanical principles. Brake linings are curved friction materials attached to brake shoes within an enclosed drum brake system, expanding outward to stop the vehicle. Brake pads are flat friction blocks used in disc brake systems, clamping inward against an exposed rotor. Choosing between them depends entirely on the vehicle's factory axle configuration, Gross Axle Weight Rating (GAWR), and operating environment. This guide compares their mechanics, thermal dynamics, and heavy-duty specifications to support accurate procurement evaluation.
Key Takeaways
Brake linings utilize an outward expansion mechanism inside enclosed drum brakes, while brake pads utilize an inward clamping mechanism on exposed disc rotors.
Heat dissipation differs significantly; exposed rotors shed thermal energy rapidly, whereas enclosed drums retain heat longer, directly impacting friction material wear rates and compound selection.
Procurement evaluation must strictly align friction material specifications with the vehicle's Gross Axle Weight Rating (GAWR) and dimensional requirements to prevent catastrophic failure.
Axle configuration dictates component compatibility; brake pads and brake linings are mechanically incompatible and cannot be used interchangeably on the same axle setup.
Heavy-duty trucks and trailers rely on highly engineered braking systems to safely manage massive loads under extreme operational stresses. At the core of these systems are friction materials, which serve a singular, critical physical function: converting the kinetic energy of a moving vehicle into thermal energy through controlled mechanical friction. This thermal energy is then dissipated into the surrounding environment, allowing the vehicle to decelerate and stop safely. The immense kinetic energy generated by commercial vehicles requires friction materials that can withstand severe temperature spikes without losing structural integrity or their coefficient of friction.
Whether a fleet utilizes traditional drum brakes or modern air disc brakes, the friction material acts as the primary wear component in the assembly. Because these components bear the absolute brunt of the mechanical force and heat generation, their material composition and dimensional accuracy directly dictate stopping distances, maintenance intervals, and overall fleet safety. Procurement managers and technical evaluators assessing these systems must understand that while the fundamental physics of stopping a vehicle remain identical across platforms, the mechanical delivery of that friction varies drastically depending on the axle configuration. Evaluating the correct component requires analyzing how the specific braking system applies force, manages thermal loads, and aligns with the operational demands of the fleet's specific routes and cargo weights.
A brake lining is a curved, heavy-duty friction material designed specifically for use within a drum brake system. In this configuration, the lining is securely riveted or bonded to a curved metal component known as a brake shoe. The entire shoe and lining assembly sits inside a hollow, rotating cast-iron cylinder called the brake drum, which turns in tandem with the vehicle's wheel hub.
When the vehicle operator applies the brakes, pneumatic or hydraulic pressure actuates a mechanical linkage—typically an S-cam or a wheel cylinder. The S-cam rotates, pushing the rollers on the ends of the brake shoes and forcing the shoes outward from their resting position. This outward expansion forces the Brake Linings against the inner surface of the rotating drum. The resulting friction between the lining and the drum generates the necessary stopping power. Because the heavy cast-iron drum completely encloses the shoes and linings, the internal system is highly protected from external debris, mud, and moisture. This enclosed protection makes drum brakes a traditional standard for heavy-duty trucks and trailers operating in rugged, abrasive, or off-road environments.
The manufacturing and specification of these components require precise engineering to ensure consistent outward pressure and adequate thermal resistance. Zhejiang Dingchi Automotive Technology Co., Ltd. manufactures over 50 specifications of brake linings and 90 specifications of brake shoes for heavy-duty trucks and trailers. This extensive range of specifications ensures that different drum diameters, shoe widths, and operational load requirements can be met accurately. The curved geometry of the lining must perfectly match the internal arc of the drum; any deviation results in uneven wear, reduced contact area, and compromised braking efficiency. Consequently, selecting the correct lining involves matching the exact dimensional arc, thickness, and material composition to the specific drum hardware installed on the axle.
A brake pad is a flat, block-like friction material engineered for use in a disc brake system. Unlike the enclosed drum setup, a disc brake system features a heavy metal disc, or rotor, that is exposed to the open air and rotates alongside the wheel hub. The brake pads are housed within a stationary heavy-duty caliper assembly that straddles this spinning rotor.
The mechanical application of force in a disc system is fundamentally different from the outward expansion of a drum system. When the brakes are engaged, the caliper utilizes hydraulic or pneumatic pistons to squeeze the brake pads inward, clamping them tightly against both sides of the rotor. This inward clamping action generates the high-pressure friction required to halt the vehicle's momentum.
Because the rotor and pads are exposed to the surrounding air rather than enclosed in a cast-iron shell, disc brake systems benefit from rapid heat dissipation. The open design prevents the extreme heat buildup that can occur in enclosed systems during prolonged braking events, such as descending steep mountain grades. Furthermore, the flat geometry allows for a uniform distribution of clamping force across the rotor surface, translating to a more responsive brake pedal feel for the operator.
Heavy-duty brake pads consist of a rigid steel backing plate to which the friction material is securely bonded or mechanically attached. The composition of this material is formulated to withstand the immense high-shear forces generated during the clamping process. While disc brakes are increasingly adopted in modern heavy-duty applications for their cooling efficiency and straightforward inspection process, the pads themselves must be rigorously evaluated for their shear strength and thermal stability to ensure safe operation under severe load conditions.
Evaluating the operational differences between brake linings and brake pads requires analyzing how their distinct mechanical designs impact daily fleet operations, thermal management, and maintenance schedules. The following comparison highlights the shared dimensions of performance between the two systems to assist procurement teams in understanding their respective operational profiles.
Evaluation Dimension | Brake Linings (Drum System) | Brake Pads (Disc System) |
|---|---|---|
Braking System Architecture | Enclosed drum brakes | Exposed disc brakes |
Mechanical Force Application | Outward expansion against a drum | Inward clamping against a rotor |
Thermal Heat Dissipation | Slower; enclosed drum retains thermal energy | Faster; exposed rotor sheds thermal energy rapidly |
Environmental Protection | High; enclosed design blocks debris and moisture | Lower; open design exposes components to elements |
Maintenance & Inspection | Requires wheel and drum removal for full visual inspection | Allows for direct visual inspection without major disassembly |
The primary mechanical divergence lies in the application of force. Outward expansion in a drum system requires the lining to conform perfectly to the drum's inner arc, distributing pressure across a large, curved surface area. Conversely, the inward clamping of a disc system applies concentrated, high-pressure force across a flat plane.
Thermal management represents another critical operational difference that dictates procurement choices. Because drum brakes enclose the friction material, they inherently retain more heat during continuous braking events. This retained heat requires linings to be manufactured with highly stable friction materials that resist brake fade—a dangerous condition where overheated materials lose their friction capabilities. Brake pads, operating in an open-air environment, shed thermal energy much faster, significantly reducing the risk of fade. However, this open design exposes the friction material to external contaminants like water, road salt, and abrasive debris, which can accelerate wear in certain environments.
Maintenance cycles also dictate fleet procurement strategies. Inspecting brake linings typically requires mechanics to remove the heavy wheel and drum assembly, increasing labor time and vehicle downtime. Brake pads, by contrast, can often be visually inspected through the wheel spokes or with minimal disassembly, streamlining routine safety checks and reducing overall maintenance labor costs.
Procurement decisions for heavy-duty braking systems cannot rely solely on understanding the mechanical differences between drums and discs; they must be grounded in precise vehicle specifications and operational load requirements. Understanding what friction materials are used for brake linings and pads is essential for matching the component to the vehicle's Gross Axle Weight Rating (GAWR).
GAWR defines the maximum distributed weight that a single vehicle axle can safely support. Friction materials must be engineered and certified to handle the kinetic energy generated by this specific weight class. Selecting a lining rated below the axle's actual load causes overheating and "glazing"—a condition where the surface hardens, drastically reducing stopping power. If a lining or pad is installed on an axle exceeding its designed GAWR, the material will experience accelerated wear, severe thermal degradation, and potential catastrophic failure under heavy braking.

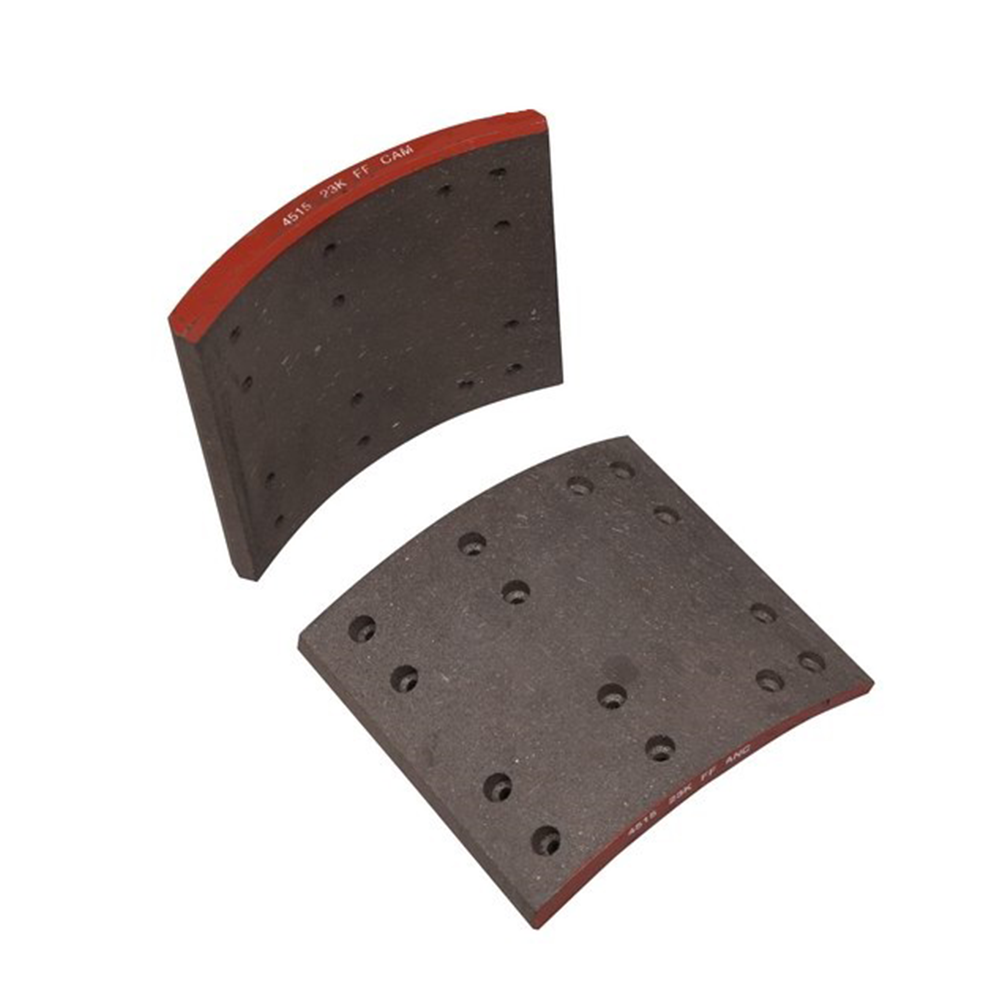

Dimensional accuracy is equally critical for safe operation. For drum brakes, the width and thickness of the lining dictate the total friction surface area and the lifespan of the component. For example, the Dingchi 4515-C BRAKE LINING WVA 19036/19037 is explicitly engineered to support a GAWR of 20,000 lbs and 23,000 lbs. It features a specific 177.8 width and offers variable thickness options (18.2, 15.2-17.6, 11.1). These precise measurements ensure that the lining matches the exact drum diameter and shoe configuration, providing optimal contact area and predictable wear rates.
When evaluating these components, procurement managers must adhere to strict compatibility guidelines to ensure fleet safety:
Important limitation: Axle configuration strictly dictates component compatibility. Brake linings and brake pads are mechanically incompatible and cannot be substituted for one another under any circumstances.
Friction materials must be matched to the specific GAWR of the axle; under-speccing the material will result in premature wear and potential brake failure.
Dimensional specifications (width, thickness, and arc) must align perfectly with the OEM hardware to prevent uneven wear and reduced stopping power.
Operating environments (e.g., high-debris off-road sites vs. high-grade mountainous terrain) should directly influence the choice of friction compound to optimize thermal stability and wear resistance.
No. Brake linings are exclusively designed for the outward expansion mechanism of drum brakes, while brake pads are engineered for the inward clamping mechanism of disc brakes. The axle's factory-installed braking hardware dictates which component must be used; they cannot be interchanged or retrofitted without completely replacing the axle's braking foundation.
The Gross Axle Weight Rating (GAWR) determines the maximum load the axle will carry, which directly translates to the amount of kinetic energy the brakes must absorb and convert to heat. Selecting a brake lining rated for the specific GAWR (such as 20,000 lbs or 23,000 lbs) ensures the friction material can handle the thermal and mechanical stress without premature degradation, cracking, or dangerous brake fade.
Indicators include increased stopping distances, a spongy brake pedal feel, uneven pulling during deceleration, and visible thinning of the friction material below the manufacturer's minimum thickness specifications. Squealing or grinding noises often indicate that the lining has worn down completely to the rivets or the bare metal shoe, requiring immediate replacement to prevent severe damage to the brake drum.
Vehicles operating in highly abrasive environments, such as mud, gravel, or construction sites, often benefit from the enclosed protection of drum brakes and require specific heavy-duty lining compounds that resist scoring. Conversely, fleets operating in mountainous terrain with long descents may prioritize materials formulated for extreme high-temperature stability to combat the heat retention inherent in enclosed drum systems.
Evaluating and procuring the correct heavy-duty braking components requires precise alignment with your fleet's axle specifications and operational demands. Dingchi supports procurement managers and technical evaluators by providing 3D installation videos, comprehensive graphic manuals, and up to 48-hour remote or on-site engineering support to ensure accurate component integration. To further reduce procurement risk and ensure specification alignment, Dingchi offers a 30-day return or exchange policy. Contact our engineering team today to verify GAWR compatibility and select the optimal friction materials for your heavy-duty applications.
