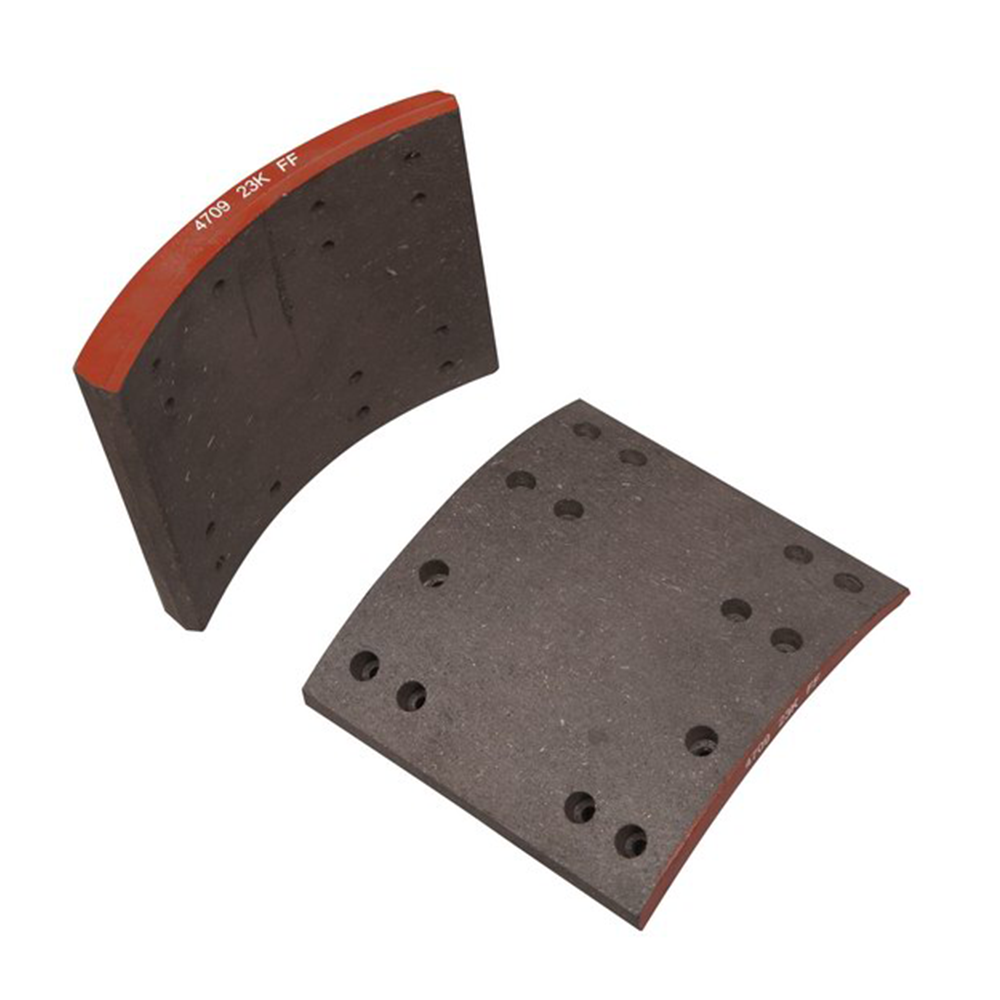

Dingchi’s 4709 Brake Lining serves as a foundational safety component engineered specifically for EATON heavy-duty vehicles, providing unwavering stopping power across the most demanding road conditions. Carrying the exact FMSI# 4709 designation, this specialized friction block is meticulously tailored to fit EATON’s braking drums (Drum: 419). We maintain strict adherence to precise dimensional parameters: an Arc Length of 196.1mm, a Width of 177.8mm, and a dual Thickness profile of 22/15.16mm. What truly distinguishes this formulation is its exceptional load-bearing capacity, enabling it to confidently support Gross Axle Weight Ratings (GAWR) of 20,000lbs and 23,000lbs. This makes it an indispensable upgrade for commercial fleets moving substantial freight. Fully compliant with FMVSS 121—the rigorous U.S. federal standard for commercial vehicle braking systems—it guarantees regulatory adherence and road safety. Running your hand along the friction surface reveals a dense, uniform composite structure, a direct result of our specialized curing process that locks in friction stability, maximizes wear resistance, and dramatically extends the operational lifespan of the wheel end.
Meeting the stringent requirements of FMVSS 121 signifies that the 4709 Brake Lining has successfully passed exhaustive testing protocols for stopping distance, pneumatic pressure response, and extreme heat resistance. For fleet operators and commercial transport managers, this compliance translates directly into minimized liability and enhanced road safety. Every unit undergoes rigorous evaluation to ensure that EATON vehicles equipped with the 4709 consistently meet or exceed U.S. safety standards, providing predictable stopping force when it matters most.
Engineered to handle massive Gross Axle Weight Ratings (GAWR) of 20,000lbs and 23,000lbs, the 4709 stands ready for the most punishing hauling assignments. To support this immense weight without structural degradation, the lining features a high-strength hot-rolled steel backing plate treated with an advanced E-coating (electrophoretic deposition) process. This specialized anti-corrosion finish effectively seals the metal against moisture, road salt, and chemical exposure, drastically reducing the risk of rust-jacking—a condition where rust expansion forces the friction material away from the shoe. This ensures the friction block remains firmly attached even in extreme, corrosive climates.
The physical geometry of the 4709—featuring an Arc Length of 196.1mm, a Width of 177.8mm, and a Thickness of 22/15.16mm—is calibrated to mate flawlessly with EATON’s 419 drum. This exact dimensional match guarantees maximum surface contact from the very first pedal application, eliminating the spongy pedal feel and reducing the risk of harmonic vibrations or brake squeal. Furthermore, this precision ensures seamless compatibility with evolving EATON system iterations, including the 4709E and 4709E2 models. We have optimized the web structure rigidity and spring anchor positions, allowing technicians to experience effortless installation and ensuring perfect shoe return after every brake engagement.
Brake fade during prolonged descents is a critical hazard for heavy transport. Dingchi’s proprietary friction compound is specifically formulated to combat this phenomenon by maintaining a stable coefficient of friction even as temperatures spike. Complementing this chemical stability is a 7-inch widened friction surface design that provides exceptional thermal capacity. This expanded surface area acts as a highly efficient heat sink, rapidly dissipating the intense thermal energy generated during heavy-load, long downhill braking scenarios. The result is a consistent, predictable stopping force that drivers can rely on, preventing the terrifying loss of braking efficiency caused by overheating.
Trailers tasked with transporting dense construction materials, heavy agricultural harvests, or oversized industrial equipment frequently operate right at their maximum GAWR limits. The 4709 Brake Lining’s exceptional load-bearing capacity and solid structural integrity make it the definitive choice for these demanding trailer applications. By resisting premature wear and maintaining its structural form under intense pressure, it prevents the frequent downtime associated with replacing blown or cracked linings, thereby securing the safe and timely transit of high-value cargo.
Long-haul commercial trucks covering thousands of miles week after week demand wheel-end components that can endure relentless, repetitive use without degrading. The stable thermal performance and strict FMVSS 121 compliance of the 4709 make it an indispensable asset for these highway giants. Drivers will notice a firm, responsive pedal feel, while maintenance managers will appreciate the extended service intervals. By reducing the frequency of unscheduled maintenance stops and maintaining consistent stopping power across diverse weather conditions, this lining significantly elevates overall fleet operational efficiency.
A: GAWR (Gross Axle Weight Rating) represents the absolute maximum weight a single vehicle axle system can safely bear. The 4709’s engineered capacity to handle 20,000lbs to 23,000lbs ensures it can confidently secure EATON vehicles operating with exceptionally heavy axle loads. This high rating prevents catastrophic lining fractures or rapid material disintegration that typically occurs when standard-duty brakes are subjected to severe overloading.
A: The replacement timeline is highly dependent on operational environments. For long-haul EATON trucks covering over 100,000 miles annually on relatively flat highways, the 4709 typically delivers a reliable service life of 80,000 to 100,000 miles. Conversely, for trailers constantly hauling heavy loads through mountainous terrain, replacement might be necessary every 60,000 to 80,000 miles. We strongly recommend regular visual and physical inspections; the lining must be replaced immediately when the thickness wears down below the critical 15.16mm threshold.
A: No. Our advanced friction formulation significantly curtails the generation of brake dust during operation. This low-dust characteristic not only keeps the wheel assemblies and surrounding components visibly cleaner but also minimizes environmental particulate pollution. Consequently, it reduces the labor and downtime required for frequent wheel cleaning and maintenance.
A: Yes, the precise physical dimensions of the 4709 (Arc Length 196.1mm, Width 177.8mm) are engineered specifically for flawless integration with EATON 419 drums. It fits all standard EATON vehicles utilizing this specific drum size directly out of the box, requiring zero modifications, grinding, or shimming by the installing technician.
A: It is absolutely vital to clearly distinguish the heavy-duty 4709 from the lightweight 4707 (6-inch) model. The 4709 features a wider 7-inch friction surface designed specifically for higher heat capacity and heavier loads. Installing a 4707 where a 4709 is required can lead to fatal safety hazards, including severe uneven drum wear, dangerous braking force imbalance, and an increased risk of vehicle jackknifing during emergency stops. Always verify the physical dimensions and FMSI number to ensure error-proof assembly.
To support large-scale procurement and diverse operational needs, we have structured our production and logistics to maximize efficiency and reduce overhead for our partners:
Automated Precision Manufacturing: Utilizing robotic automated welding and high-precision rivet hole positioning technologies guarantees that every single batch maintains strict dimensional and performance consistency, ensuring 100% compliance with FMVSS 121 standards across large-volume orders.
Aftermarket Distribution Kits: We supply highly convenient, independent wheel-end kits that include the 4709 brake lining alongside essential hardware, such as high-tension return springs and heavy-duty rollers, simplifying inventory management for regional service centers.
Palletized Bulk Configurations: For large fleet operators and brake remanufacturing facilities, our optimized bulk packaging minimizes cardboard waste, streamlines warehouse handling, and significantly drives down overall supply chain expenditures.
