In the world of heavy-duty commercial vehicles, the brake lining is a fundamental component of the drum brake system. It is the critical friction material responsible for safely and reliably slowing down tons of moving mass. While often seen as a simple replacement part, the choice of the correct brake lining is a strategic decision. It directly impacts operational safety, vehicle uptime, and the total cost of ownership (TCO) for any commercial fleet. An incorrect choice can lead to premature wear, damaged components, and even catastrophic failures on the road.
This guide provides a clear and comprehensive evaluation framework for fleet managers, owner-operators, and maintenance technicians. We will explore the core functions, material science, and application-specific criteria you need to consider. By understanding these factors, you can move beyond price-based decisions and select the optimal brake lining that enhances safety, minimizes downtime, and delivers the best long-term value for your heavy-duty vehicles.
Core Function: Brake linings are the consumable friction surfaces in drum brakes that convert kinetic energy into heat, essential for the safe operation of heavy trucks and buses.
Material Dictates Performance: The choice of material (e.g., organic, semi-metallic, sintered) is the primary driver of braking performance, service life, and heat resistance under heavy loads.
Evaluation Criteria: Key decision factors include friction stability across a wide temperature range, wear rate, fade resistance, and compatibility with brake drums.
Application-Specific Selection: The right lining depends on the vehicle's application; a REAR BRAKE LINING for MAN 220 in construction will have different requirements than a BRAKE LINING for HOWO 195 used in long-haul transport.
TCO Over Price: The lowest unit price can lead to higher long-term costs due to increased vehicle downtime, accelerated drum wear, and potential safety risks.
Understanding what a brake lining is and how it functions is the first step toward making an informed purchasing decision. Its design is simple, but its role is absolutely critical to vehicle safety and performance.

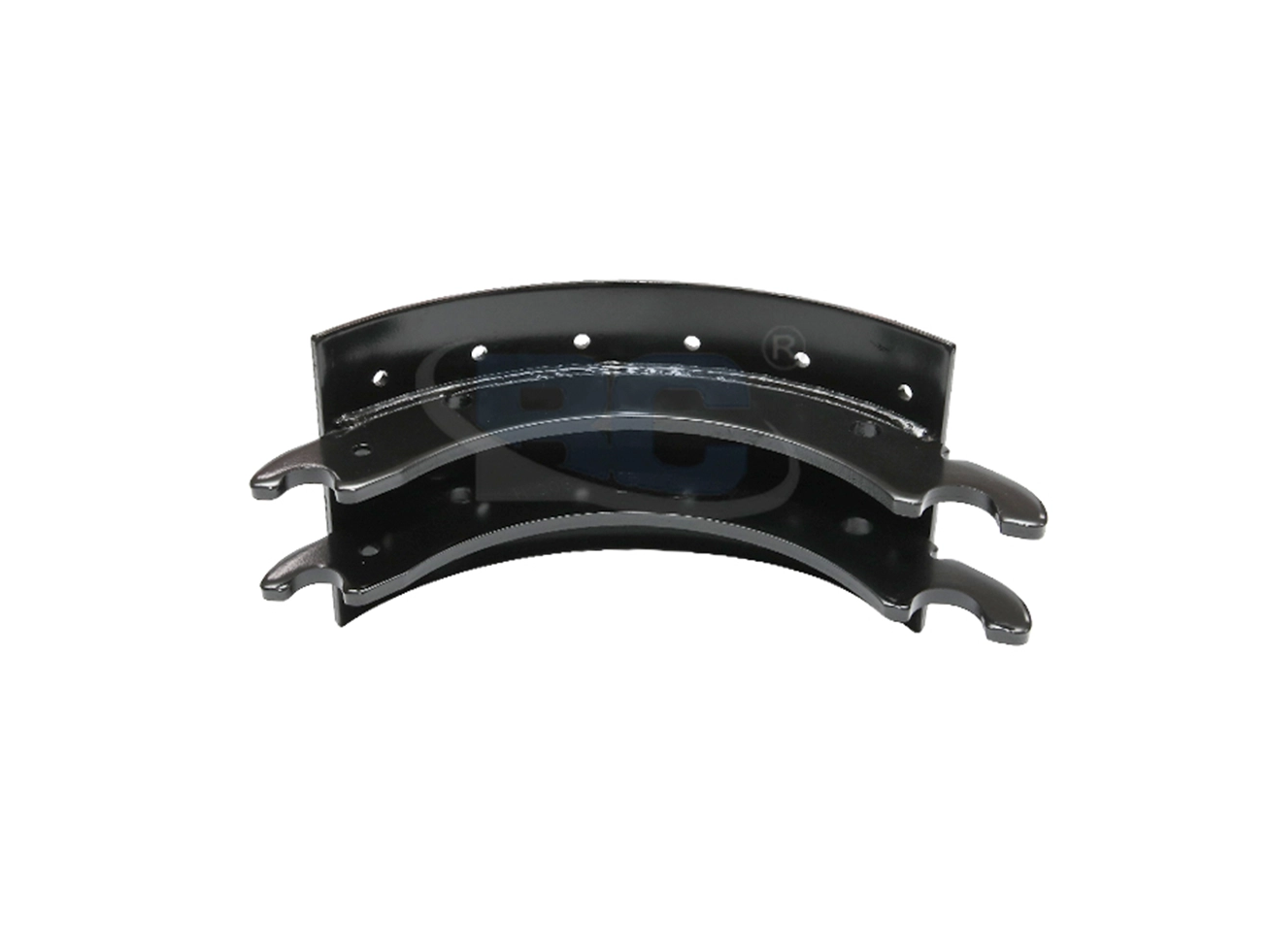

A brake lining is not a standalone component. It is a specially formulated friction material composite that is shaped into a curved block. This block is then permanently attached to a rigid, crescent-shaped metal component known as the brake shoe. The attachment is achieved through one of two methods:
Bonding: A high-temperature adhesive is used to fuse the lining material directly to the shoe, creating a seamless and strong connection.
Riveting: Metal rivets are passed through the lining and shoe, securing the two pieces together mechanically. Riveted linings are common in heavy-duty applications due to their robust nature.
The entire assembly—the shoe and the lining—works together within the brake drum to create the necessary stopping force.
The process of braking with a drum brake system is a straightforward mechanical action. When the driver presses the brake pedal, the vehicle’s braking system converts this action into force.
Hydraulic fluid or, more commonly in heavy trucks, compressed air (pneumatic pressure) is sent to the wheel's brake assembly.
This pressure activates a mechanism (like a wheel cylinder or an S-cam) that pushes the brake shoes outward.
As the shoes expand, the attached brake linings are forced against the inner spinning surface of the brake drum.
This contact creates immense friction, converting the vehicle's kinetic energy (motion) into thermal energy (heat).
This energy conversion rapidly slows the rotation of the wheel, bringing the vehicle to a controlled stop.
Not all brake linings are created equal. Their performance is measured by several key metrics that determine their effectiveness, safety, and lifespan.
The friction coefficient, symbolized by the Greek letter μ (mu), is a direct measure of a material's stopping power. A higher coefficient means more friction and stronger braking. However, the most important attribute is not just a high value, but a stable one. The lining must provide consistent and predictable braking performance from a cold start to the high temperatures generated during heavy use. An unstable coefficient can lead to jerky or unpredictable braking, which is a major safety concern.
Brake fade is the temporary loss of braking power that occurs when the system overheats. During prolonged or hard braking, such as descending a long, steep grade, the linings can reach extreme temperatures. Some materials lose their frictional properties when too hot, making the brake pedal feel soft and significantly increasing stopping distances. Superior fade resistance ensures the lining maintains its effectiveness even under these demanding conditions.
The wear rate defines how quickly the friction material abrades during use. A durable lining with a low wear rate lasts longer, extending service intervals and reducing maintenance costs. This is directly tied to the material's composition. A lining that wears too quickly increases vehicle downtime and labor expenses, while one that is overly aggressive can cause premature wear on the more expensive brake drums.
The material composition of a brake lining is the single most important factor determining its performance characteristics. Heavy-duty applications generally rely on three primary categories of materials, each with distinct advantages and trade-offs.
| Material Type | Key Characteristics | Ideal Use Case | Trade-offs |
|---|---|---|---|
| Non-Asbestos Organic (NAO) | Composed of fibers, resins, and fillers. Generally quiet and gentle on brake drums. | Lighter-duty commercial vehicles, low-intensity routes, urban delivery vans, noise-sensitive areas. | Lower heat tolerance, which can lead to faster wear and increased fade under severe braking conditions. |
| Semi-Metallic | Contains a high percentage (30-65%) of metal fibers (steel, copper). Excellent heat dissipation and high durability. | The industry standard for most on-highway trucks, trailers, and buses. Versatile for a wide range of loads and conditions. | Can be more aggressive on brake drums than NAO materials. May produce more noise and brake dust. |
| Sintered Metal | Metal powders are fused under extreme heat and pressure. Offers maximum density, strength, and fade resistance. | Severe-duty and off-road applications: mining haul trucks, construction vehicles, logging trucks, and waste management. | Highest cost. Can be noisy and cause the most wear to brake drums due to its aggressive nature. |
NAO linings are formulated from a blend of fibers like glass and aramid, bound together with resins. They are known for their quiet operation and their relatively gentle impact on brake drums, which helps extend the life of these costly components. However, their organic nature means they have a lower threshold for heat, making them less suitable for heavy-load, high-speed applications where significant heat is generated.
This is the most common material type for commercial vehicles today. By incorporating a high volume of metal fibers, semi-metallic linings offer a great balance of performance, durability, and cost. The metal content acts as an excellent conductor, drawing heat away from the friction surface and dissipating it effectively. This improves fade resistance and contributes to a longer service life, making it a reliable choice for the varied demands of on-highway trucking.
Sintered linings represent the pinnacle of heavy-duty braking performance. The manufacturing process creates an incredibly dense and robust material that can withstand extreme temperatures without fading. This makes them the default choice for vehicles that operate under constant heavy loads or in harsh environments where brakes are pushed to their absolute limits. While their purchase price is the highest, their reliability in critical applications is unmatched.
Selecting the right brake lining is not a one-size-fits-all process. The optimal choice depends entirely on the vehicle's specific job. A fleet manager must analyze the operational demands of each vehicle class to ensure the braking system is properly specified for safety and efficiency.
Vehicles that spend most of their time on the highway operate at sustained speeds and often carry significant weight over long distances. Braking events may be less frequent than in city driving, but they occur at higher speeds and can involve long, steady applications on downhill grades.
Success Criteria: The primary goals are durability and thermal stability. Linings must resist wear over hundreds of thousands of miles and maintain consistent performance at high operating temperatures to prevent fade.

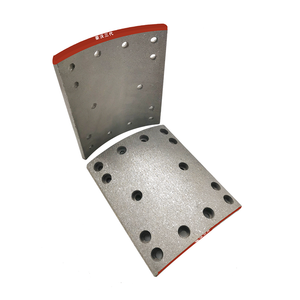

Recommended Focus: A premium semi-metallic BRAKE LINING for HOWO 195 and similar long-haul trucks is typically the best choice. These are engineered for extended service intervals and reliable stopping power on the open road.
Vocational trucks, such as garbage trucks, dump trucks, and local delivery vehicles, face a punishing cycle of constant acceleration and deceleration. Their brakes are always in use, but often at lower speeds.
Success Criteria: The most critical factor is resistance to abrasive wear. The linings must withstand thousands of braking cycles per day without wearing out prematurely. Consistent cold-to-hot performance is also key.
Recommended Focus: A robust semi-metallic or a specialized, high-density NAO lining is ideal. These formulations are designed to handle the high frequency of stops and starts common in urban and suburban environments.
These vehicles operate at the limits of their design capacity in punishing environments like construction sites, mines, and logging forests. They carry massive loads, navigate steep inclines, and operate on uneven surfaces.
Success Criteria: Uncompromising resistance to heat fade is the number one priority. The linings must also possess high mechanical strength to resist cracking or crumbling under extreme pressure and vibration.
Recommended Focus: Sintered metal linings are often required for these applications. For vehicles like heavy tippers, a top-tier, application-specific REAR BRAKE LINING for MAN 220 made from premium semi-metallic or sintered material is essential for safety and reliability.
A common mistake in fleet management is selecting a brake lining based solely on its initial purchase price. This approach often leads to higher long-term expenses. The true Total Cost of Ownership (TCO) considers all associated costs over the component's life, providing a much clearer picture of its value.
This is the simplest part of the equation: the acquisition price per axle set. While important, it is only a small fraction of the overall financial impact.
These are the hidden factors that truly determine the cost-effectiveness of a brake lining. A high-quality lining provides a return on investment (ROI) through several key areas:
Vehicle Uptime: This is the most significant factor. A durable lining with a longer service life means fewer brake jobs. Every time a truck is in the service bay, it is not on the road earning revenue. Reducing service events directly increases vehicle availability and profitability.
Associated Component Life: A well-matched brake lining minimizes wear and tear on the brake drums. An overly aggressive or poor-quality lining can quickly score or damage a drum, forcing an expensive and premature replacement. Deferring drum replacements is a major cost saving.
Labor Costs: Reducing the frequency of brake maintenance directly lowers the associated labor costs. Fewer replacements mean fewer hours your technicians spend on brake jobs, allowing them to focus on other critical tasks.
Safety & Compliance: This is an invaluable benefit. Investing in high-quality, reliable linings mitigates the immense financial and reputational risks of brake-related accidents. It also helps ensure vehicles pass roadside inspections, avoiding costly fines and out-of-service violations.
Proper maintenance is just as important as proper selection. Regular and thorough inspections of the brake system are essential for catching potential issues before they become serious safety hazards or lead to expensive cascading failures.
Technicians should follow a consistent process when inspecting drum brakes and linings. Key areas of focus include:
Thickness Measurement: The most basic check. Use a brake lining thickness gauge to measure the material remaining. Most regulations and OEM specifications mandate replacement when the lining reaches a minimum thickness, typically around 2-4mm at its thinnest point. Always consult the specific manufacturer's service manual.
Surface Integrity: Visually inspect the lining's surface for signs of distress. Look for cracks (heat checking), which indicate excessive heat, or glazing—a smooth, glossy, hardened surface that drastically reduces the friction coefficient. Glazing is a clear sign of overheating.
-
Check for any signs of oil from a leaking wheel seal, grease from over-lubrication, or brake fluid. Any contamination will compromise the lining's ability to create friction and must be addressed immediately by fixing the source of the leak and replacing the contaminated linings.
Wear Patterns: The lining should wear evenly across its entire surface. Tapered wear (thinner on one end than the other) or uneven grooves can signal underlying problems with brake hardware, such as weak return springs, binding S-cams, or improper adjustment.
When it's time for a replacement, following professional best practices ensures the new linings will perform optimally and safely.
Replace as a Set: Always replace brake linings on both wheels of a single axle at the same time. This ensures balanced braking and prevents the vehicle from pulling to one side.
Inspect All Hardware: The linings are just one part of the system. Thoroughly inspect all related hardware, including springs, rollers, bushings, and slack adjusters. Worn or fatigued hardware can cause improper brake function and premature lining wear. Replace any components that show signs of wear or damage.
Follow a Burnishing Procedure: New brake linings require a "bedding-in" or burnishing period to mate properly with the drum surface. This process involves a series of controlled stops to gently heat-cycle the new material, ensuring full contact and optimal friction characteristics. Follow the lining manufacturer's recommended procedure for the best results.
Selecting the right brake lining is a critical fleet maintenance decision that extends far beyond the parts counter. It is a strategic choice that has a direct and significant impact on vehicle safety, operational efficiency, and your bottom line. The initial price tag tells only a fraction of the story; the true value lies in longevity, reliability, and the protection of more expensive components like brake drums.
The core principle is clear: the optimal choice is always defined by the vehicle’s specific application, its typical load demands, and the environment in which it operates. By analyzing these factors and focusing on the Total Cost of Ownership, you can equip your fleet with braking systems that are not just compliant, but are truly optimized for performance and safety.
To ensure you select the correct specification for your vehicles, consult with a heavy-duty parts specialist. Discuss your fleet's unique needs to get a tailored recommendation for your specific MAN, HOWO, or other commercial models, ensuring a perfect match between part and purpose.
A: Brake linings are used in drum brake systems and press outwards against the inside of a drum. Brake pads are used in disc brake systems and clamp inwards on a rotor (disc). While both serve the same function of creating friction, they are designed for two different types of brake architecture.
A: Inspection frequency depends heavily on application. A common best practice is during every scheduled preventative maintenance service or oil change. Additionally, they should be part of a driver's daily pre-trip inspection, where any noticeable issues with brake performance should be reported immediately.
A: A WVA number is a standardized cataloging system, used primarily in Europe, to identify the unique shape, dimensions, and application of a brake lining or pad. This system helps ensure that the correct replacement part is sourced for a specific vehicle, avoiding fitment issues and guaranteeing performance.
A: Common causes include vehicle overloading, which generates excessive heat; improper brake adjustment leading to dragging; contamination from oil or grease leaks; poor driving habits like "riding" the brakes; and, most importantly, using a lining material that is not suited for the vehicle's specific application.
