Views: 0 Author: Site Editor Publish Time: 2026-03-18 Origin: Site
You can see the big difference between 4707 and 4515 brake lining in their shape and thickness. They also fit differently on your brake system. Choosing the right type keeps your vehicle safe. It also helps you save money. Safety depends on using the correct brake lining for what you need.
Learn about the shape and thickness of 4707 and 4515 brake linings. The 4707 has a flat web. It is thicker than the 4515. The 4515 has a hump.
Always look at the rivet pattern before you install. If you mix up the patterns, your brakes may not work well. This can cause safety problems.
Pick the right brake lining for your vehicle type. Use 4707 for heavy-duty trucks. Use 4515 for lighter vehicles. This helps your brakes work best.
Check the warranty details. The 4707 usually has a warranty against rust jacking. The 4515 does not have this warranty most of the time.
Make sure the brake lining fits your driving needs. Think about load, temperature, and rules. This keeps your brakes safe and working well.

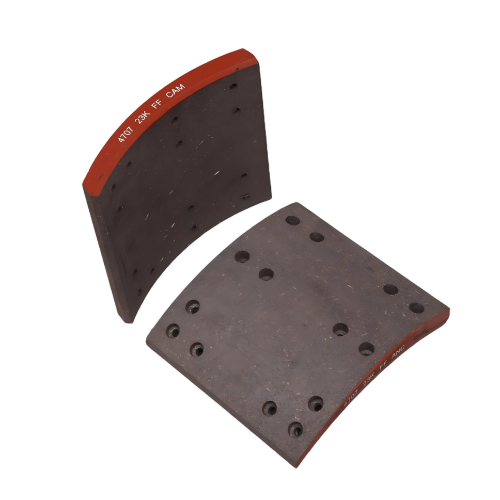

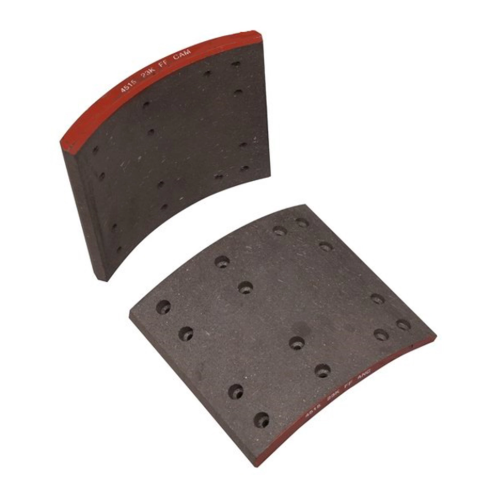

It is important to know how 4707 and 4515 brake lining look and feel before picking one. The size and shape change how the lining works and fits. The 4707 style brake shoes have a flat web. The 4515 brake lining has a hump on the web. This hump helps the 4515 fit some brake systems. You can see this difference when you look at the brake pad.
Here is a table that shows the main differences:
Feature | 4707 Brake Lining | 4515 Brake Lining |
|---|---|---|
Dimensions | Standard for 4707 style brake shoes | Standard for 4515 shoes |
Shape | Flat web | Hump on web |
Lining Thickness | 4.8 mm | 4.6 mm |
Q/Q+ Classification | Q+ (modern, higher performance) | Q (classic, lighter-duty) |
Compatibility | Fits 4707 style brake shoes | Fits 4515 shoes |
Cost | Usually higher | Usually lower |
The thickness of the lining is not the same. The 4707 brake lining is 4.8 mm thick. The 4515 brake lining is 4.6 mm thick. This small change matters when you put in the brake pad. If you use the wrong thickness, your brakes may not work well or wear out fast.
You need the right rivet pattern to mount the brake lining. The 4707 style brake shoes use a special rivet layout for their flat web. The 4515 brake lining has a different pattern because of the hump. Always check the rivet holes before you put in the lining. If you mix up the patterns, the brake pad will not fit right. This could hurt your brake system.
Different brands give different warranty terms. For example, the 4707 brake lining often has a 3-Year/300,000-Mile warranty for rust jacking. The 4515 brake lining usually does not have this warranty. You should read the warranty rules before you buy:
Model | Warranty Terms |
|---|---|
4707 | 3-Year/300,000-Mile warranty against rust jacking |
4515 | N/A |
The warranty replaces all other promises.
There is no promise that it will work for every use.
The seller is not responsible for extra damages.
How hot or wet it is can change how brake lining works. You need to match the friction code to how you drive. The table below shows common friction codes and their temperature ranges:
Friction Code | Temperature Range (°F) | Performance Description |
|---|---|---|
E | 200 - 400 | Moderate friction; smoother and quieter, common in lighter or line-haul service. |
F | 400 - 650 | Standard heavy-duty friction; balanced torque output and heat resistance for most regional and on-highway applications. |
G | 400 - 650 | High friction; designed for severe-duty, high-temperature, or downhill-grade service where maximum fade resistance is needed. |
Tip: Always check the shape, thickness, and rivet pattern before you put in a brake lining. This helps you avoid mistakes and keeps your vehicle safe.
This comparison helps you pick fast. If you drive a modern truck or want better performance, the 4707 style brake shoes and their brake lining are a good choice. If you drive a lighter vehicle, the 4515 brake lining may work for you and cost less.
You cannot swap a 4707 brake lining with a 4515 brake lining. The rivet patterns do not match. The lining thickness changes how the brake pad fits. The 4707 style brake shoes use a Q+ classification. The 4515 style brake shoes use a Q classification. If you try to use the wrong brake lining, the brake pad will not sit right. This mistake can cause poor braking and faster wear. Always check the shape and rivet holes before you install a brake pad.
You see the 4707 style brake shoes on modern heavy trucks. These trucks need strong brakes for long hauls and heavy loads. The 4515 style brake shoes work best on lighter vehicles. You find them on older trucks or trailers that do not carry as much weight. The axle position matters too. Most fleets use 4707 style brake shoes on drive axles. You use 4515 style brake shoes on trailer axles or lighter-duty positions.
Here is a quick list to help you remember:
4707 style brake shoes: heavy-duty trucks, drive axles, high-load cycles
4515 style brake shoes: lighter vehicles, trailer axles, low-load cycles
The performance of each brake lining changes with the duty cycle. The 4707 brake lining gives you higher friction and better thermal stability. You can trust it for repeated heavy loads. The 4515 brake lining works well in cold weather and light-duty cycles. It may fade if you push it too hard in high temperatures.
Here is a table that shows the performance differences:
Brake Lining | Duty Cycle | Friction Coefficient | Thermal Stability | Performance Issues |
|---|---|---|---|---|
4707 | Heavy-Duty | Higher | Better | Suitable for repeated high-load cycles |
4515 | Light-Duty | Lower | Lower | Cold-weather responsiveness prioritized, potential fade at high temperatures |
Note: If you drive a heavy truck, you need a brake lining that can handle heat and stress. If you drive a lighter vehicle, you want a brake pad that responds well in cold weather.
You must match the brake lining to your vehicle and driving needs. This choice keeps your brakes safe and helps them last longer.
You can spot the difference between 4707 and 4515 brake linings by looking at their shape and rivet patterns. The 4707 brake lining has a flat web. The 4515 brake lining shows a hump on the web. This hump stands out and helps you tell them apart quickly. When you check the rivet holes, you see that the patterns do not match. The 4707 lining uses a unique layout for its flat web. The 4515 lining has a different pattern because of the hump. If you look closely, you notice the thickness changes too. The 4707 lining is a bit thicker than the 4515. These are the main identifying features of 4515 and 4707 brake linings.
Tip: Always check for the hump on the web and the rivet pattern before you install a brake lining. This helps you avoid mistakes and keeps your brakes working safely.
You can use part numbers and manufacturer markings for brake shoe identification. These numbers help you find the right lining for your vehicle. Manufacturers print or stamp part numbers on the lining. You may also see brand names and other codes. These markings show the drum size, width, and position. They help you match the lining to your brake system.
Here is a table that shows how part numbers and markings help you identify brake linings:
Brake Lining | Brand | Drum Size | Width | Webs | Position | Applications |
|---|---|---|---|---|---|---|
4707 | Meritor/Spicer | 16.5 | 7 | 2 | Drive and Trailer | Meritor Q Plus, Spicer XL II, Meritor H.D. |
4515 | Meritor | 16.7 | 7 | 2 | Universal | Meritor Cast Iron |
You should always check the part number and brand before you buy or install a brake lining. This step helps you avoid using the wrong part. If you cannot find the marking, ask your supplier or check the manufacturer’s catalog.
Note: Matching the part number and brand ensures you get the right brake lining for your vehicle and keeps your brake system safe.
You need to look at several factors before you pick a brake pad for your vehicle. The type of vehicle matters most. Heavy trucks need a brake pad that can handle high loads and heat. Lighter vehicles work best with pads made for low-duty cycles. Regulations also play a big role. Some states require certain friction codes or lining thickness. You must check these rules to stay safe and legal.
Performance needs change from one driver to another. If you drive long distances or carry heavy loads, you want a brake pad with high thermal stability. If you drive in cold weather or haul light loads, you need a pad that responds quickly. Cost is another factor. You may want to save money, but cheap pads can wear out fast or cause safety issues.
Here is a table to help you compare:
Factor | What to Check |
|---|---|
Vehicle Type | Truck, trailer, or bus |
Regulations | State laws, friction codes |
Performance | Duty cycle, heat resistance |
Cost | Price, warranty, lifespan |
Tip: Always match the brake pad to your vehicle and driving needs. This keeps you safe and helps your brakes last longer.
You can make mistakes if you do not pay attention. One common mistake is using the wrong brake pad for your brake system. If you install a pad with the wrong rivet pattern or thickness, it will not fit right. This can cause poor braking or fast wear. Another mistake is ignoring the duty cycle. If you use a light-duty pad on a heavy truck, the pad may fade or fail.
Some people forget to check regulations. You must follow state laws and industry standards. Skipping this step can lead to fines or unsafe brakes. You may also overlook the warranty. If you buy a pad without a good warranty, you risk extra costs later.
Note: Always check the shape, thickness, and part number before you install a brake lining. This helps you avoid costly errors and keeps your vehicle safe.
You can easily spot the differences between 4707 and 4515 brake linings. They do not look the same. Their thickness is not the same either. Each one fits certain brake systems. Picking the right brake lining helps your vehicle stop better and keeps you safe. Always check what the lining is made of. Look at the friction coefficient and make sure it fits your brakes. Manufacturers say you should bed new linings before using them. They also say to pick certified products for your vehicle. If you are not sure what to do, ask a professional or someone you trust who sells parts. Safety, how long the lining lasts, and how well it works are more important than just saving money.
Tip: Work with experts so you do not make mistakes and your brakes stay safe.
No, you cannot use them interchangeably. The rivet patterns and thickness differ. If you try to swap them, the brake lining will not fit. Always check your brake shoe type before you buy.
Look for a flat web and a thicker lining. Check the rivet pattern. You can also find the part number stamped on the lining. These features help you spot a 4707 brake lining fast.
You risk poor braking and faster wear. The lining may not sit right. This mistake can cause safety issues. Always match the lining to your brake shoe and vehicle.
The 4707 brake lining works best for heavy-duty trucks. It offers higher friction and better heat resistance. You get reliable performance for long hauls and heavy loads.
