Brake relining is the process of removing worn friction material from a brake shoe or band and applying a new surface. For fleet managers, service technicians, and vehicle owners, brake maintenance presents a critical decision. The choice isn't just about replacing parts; it's about optimizing for cost, vehicle uptime, safety, and performance. A simple swap might seem easy, but it can be wasteful and expensive, especially for large-scale operations or specialized vehicles. This guide provides a clear evaluation framework for deciding between brake relining and full component replacement. It will help you make a financially sound and operationally safe choice that aligns with your specific needs, balancing budget, sustainability, and performance to achieve the best possible outcome for your vehicles and equipment.
Core Concept: Brake relining is a refurbishment process that replaces only the wearable friction material (the lining), reusing the original metal brake shoe or band (the core).
Primary Benefit (TCO): Relining is typically more cost-effective than buying a new component, offering significant savings, especially for large fleets or specialized/vintage vehicles where new parts are expensive or scarce.
Critical Prerequisite: The viability of relining depends entirely on the structural integrity of the core brake shoe. Damaged, cracked, or warped cores are not candidates for this process.
Key Trade-Off: The decision is a balance between the immediate cost savings and sustainability of relining versus the guaranteed "as-new" condition and potentially longer service life of a full replacement.
Supplier Vetting is Crucial: The quality of the relining service—including the brake lining material used and the attachment method (bonding vs. riveting)—directly impacts the safety and performance of the brake system.
When servicing drum brakes or industrial brake bands, you face two primary strategies: relining the existing component or replacing it entirely. Each path has distinct advantages and is suited for different operational contexts. Relining focuses on refurbishment and sustainability by replacing only the worn friction material. Full replacement, on the other hand, provides a brand-new component, ensuring every part of the assembly meets original equipment manufacturer (OEM) specifications from day one. Understanding the trade-offs between these two approaches is essential for making an informed maintenance decision that balances cost, safety, and long-term value.
To simplify this choice, we've created a comparative table that breaks down the key evaluation dimensions for each strategy.
| Evaluation Dimension | Brake Relining | Full Replacement |
|---|---|---|
| Upfront Cost | Lower | Higher |
| Total Cost of Ownership | Potentially lower; dependent on core life | Predictable; based on new component lifespan |
| Sustainability | High (reuses metal core) | Low (discards entire old component) |
| Turnaround Time | Can be fast with a dedicated supplier | Dependent on part availability |
| Performance | OE-spec or better when done correctly | Guaranteed OE-spec |
| Ideal Scenario | Routine maintenance, undamaged cores, budget constraints, classic/rare vehicles | Damaged cores, safety-critical applications, standardized fleets |
The decision to reline isn't automatic; it requires a careful assessment of several factors. A successful relining job delivers performance and safety comparable to a new part at a fraction of the cost. However, this is only true when the conditions are right. Success hinges on the health of the core component, the demands of the vehicle's application, and the long-term financial strategy. By evaluating these three criteria, you can confidently determine if using a new brake lining is your best option.
The entire premise of brake relining rests on the structural integrity of the metal brake shoe or band, often called the "core." Before any work begins, a thorough inspection is non-negotiable. A compromised core cannot be safely reused, making full replacement the only viable path.
Cracks: Examine the entire core for any stress fractures, especially around rivet holes and welded areas. Even a hairline crack can propagate under the immense pressure and heat of braking, leading to catastrophic failure.
Warping or Bending: Lay the shoe on a flat surface to check for any distortion. A warped shoe will not make even contact with the drum, resulting in poor braking performance, noise, and accelerated, uneven wear.
Excessive Corrosion: Surface rust is common, but deep, pitting corrosion weakens the metal. It compromises the core's strength and can prevent the new lining from adhering properly.
Elongation of Rivet Holes: If the shoe was previously riveted, inspect the holes. If they are stretched, misshapen, or "egged out," new rivets will not hold securely, creating a significant safety hazard.
Expert Tip: If any of these defects are present, the decision is made for you. A damaged core must be discarded and replaced. Attempting to reline a faulty core is a gamble on safety that you should never take.
The vehicle's job determines the stress placed on its braking system. What works for a light-duty van may be inadequate for a heavy-haul truck. You must match the maintenance strategy to the application.
Standard Commercial Fleets: For vehicles in normal service, like delivery vans, regional box trucks, and buses on predictable routes, relining is a highly effective cost-control strategy. The duty cycles are generally moderate, and reusing healthy cores can generate substantial savings across a large fleet without compromising safety.
Severe-Duty Applications: For vehicles operating in extreme conditions—such as garbage trucks, mining equipment, or construction vehicles—the decision requires more scrutiny. The brakes endure immense heat and heavy loads. In these cases, relining is still an option, but only if a high-grade, severe-duty friction material is used that meets or exceeds OEM specifications. You must ensure the relined component can handle the punishment.
Classic & Vintage Vehicles: For restorers and owners of classic cars, relining is often the *only* viable option. New old stock (NOS) parts can be unobtainable or prohibitively expensive. Relining preserves the original, date-coded hardware, which is crucial for maintaining the vehicle's authenticity and value.
While relining offers immediate cost savings, a smart decision considers the total cost of ownership (TCO). This involves looking beyond the initial invoice to calculate the true financial impact over the component's life.
Frame your decision as a return on investment (ROI) calculation. On one side, you have the clear benefits of relining: lower upfront part cost and reduced material waste, which aligns with sustainability goals. On the other side, you must consider the potential for a slightly shorter service interval compared to a premium new component, which could mean more labor costs over time. If a relined shoe using standard lining lasts 80% as long as a new shoe but costs 50% less, the TCO is clearly in favor of relining. A quality brake-lining supplier can provide materials that match or even exceed the longevity of OEM parts, further strengthening the financial case for relining.
The success of a brake reline depends almost entirely on the expertise and quality standards of your chosen service provider. A subpar job can compromise safety and lead to premature failure, erasing any initial cost savings. When vetting a supplier, you are not just buying a service; you are investing in safety and reliability. Focus on three critical dimensions: the quality of their materials, their technical expertise in attachment methods, and their commitment to quality control.
The friction material itself is the most critical element of the brake system. The service of attaching it is important, but the quality of the lining determines performance, durability, and safety. A reputable supplier should be transparent about where they source their materials and what options are available.
Woven Linings: Made from strands of friction material woven together, these are often found in industrial applications and vintage vehicles. They offer excellent durability and heat resistance.
Molded Linings: Created by heat-pressing a mixture of friction agents, resins, and fillers into a finished shape. This is the most common type for modern commercial vehicles, offering a good balance of performance and cost.
Semi-Metallic Linings: These contain a high percentage of metal fibers (like steel or copper), which helps dissipate heat effectively. They provide excellent stopping power but can be noisier and cause more wear on brake drums.
Discuss your vehicle’s application with the supplier. They should be able to recommend a material with the right friction coefficient, fade resistance, and wear characteristics for your specific needs.
A professional supplier should be proficient in both major attachment methods and guide you to the best choice for your application.
Bonding: In this process, a high-strength thermal adhesive is applied to the brake shoe core, and the lining is attached under immense heat and pressure. The primary benefit is 100% surface contact between the lining and the shoe, which provides excellent heat transfer and even wear. It also eliminates the risk of rivet heads scoring the brake drum as the lining wears down. However, the process is highly technical; improper cleaning or curing can lead to bond failure.

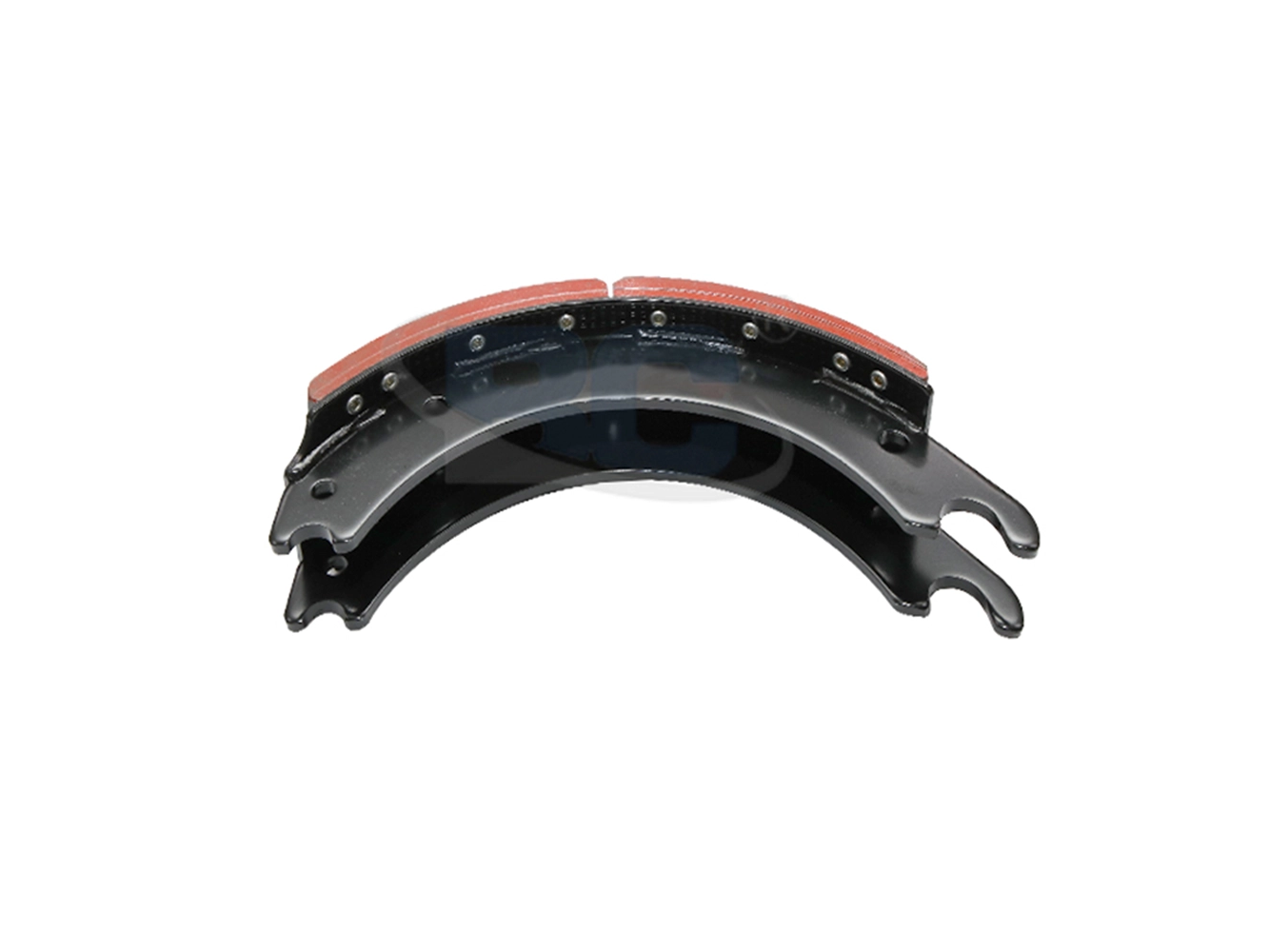

Riveting: This is a mechanical fastening method where rivets are passed through the lining and the shoe table and then pressed to secure them. It is a time-tested, robust method that is easy to inspect for integrity. Riveting is often preferred in heavy-duty and off-road applications due to its proven strength. The main drawback is that the lining must be replaced before it wears down to the rivet heads to prevent costly drum damage.
The best method depends on factors like vehicle weight, operating temperature, and environmental conditions. An expert supplier will analyze these variables to make the right recommendation.
A reliable supplier operates under a strict quality control system. Ask about their processes and certifications.
Certifications: Look for technicians certified by organizations like the National Institute for Automotive Service Excellence (ASE). This indicates a commitment to professional standards.
-
In heavy-duty trucking, ensure the materials meet standards like the Federal Motor Vehicle Safety Standard (FMVSS) 121, which governs air brake systems.
Post-Reline Services: A top-tier supplier offers finishing services that ensure perfect fitment. The most important of these is arc grinding. This process grinds the newly installed lining to the exact diameter of your brake drum. This step significantly reduces the break-in period and ensures full friction contact from the very first stop, preventing noise and promoting even wear.
The principles of brake relining are universal, but their application must be tailored to the specific demands of the vehicle or machine. The requirements for a long-haul truck are vastly different from those of a factory crane or a classic car. Demonstrating expertise across these diverse applications is the hallmark of a skilled brake service provider.
Braking systems in Class 8 trucks operate under immense pressure. They must safely manage massive loads while dissipating extreme heat, especially on long downgrades. The unique demands include:
High Heat Dissipation: The friction material must resist brake fade, a dangerous condition where excessive heat reduces the lining's coefficient of friction, leading to a loss of stopping power.
Durability: Linings must withstand hundreds of thousands of miles of service to be cost-effective for fleet operations.
Regulatory Compliance: All components must comply with strict federal standards, such as FMVSS 121. This dictates minimum stopping distances and performance criteria.
For systems like those found on heavy-duty vehicles, choosing the correct friction material is paramount. A high-quality BRAKE LINING for EATON axles must be engineered specifically for these conditions, ensuring safety and performance under maximum load.
Industrial applications present a different set of challenges. Brakes on cranes, winches, and factory machinery often have unique form factors, such as brake bands or custom-shaped segments, rather than traditional shoes. Key considerations include:
Diverse Form Factors: The supplier must have the capability to reline non-standard shapes, including flexible bands and large-diameter segments.
Static Holding Power: Many industrial brakes are used to hold loads stationary rather than for dynamic stopping. The friction material must have a high static coefficient of friction to prevent slippage.
Specialized Materials: These applications may require materials resistant to oil, chemicals, or other environmental contaminants found in a manufacturing setting.
Experience is critical here. A supplier must demonstrate a history of working with diverse industrial equipment to be trusted with these safety-critical components.
For collectors and restorers, originality is paramount. Relining is often the preferred method because it preserves the vehicle's original parts, which may be rare or impossible to replace. The focus here is on craftsmanship and precision.
Preservation of Original Parts: Reusing the original brake shoe cores is essential for maintaining a vehicle's authenticity and value.
Custom Techniques: Specialized services like custom arc grinding are not just beneficial; they are often necessary to match the relined shoe perfectly to an older, potentially worn brake drum. This ensures a smooth, quiet pedal feel true to the vehicle's original character.
Material Matching: A knowledgeable supplier can recommend a modern friction material that mimics the performance characteristics of the original asbestos-based linings but without the associated health risks.
Understanding the professional relining process can build confidence in the service and highlight what separates a quality job from a risky shortcut. A meticulous, step-by-step approach is essential for ensuring safety and performance. Furthermore, being aware of common risks and their mitigation strategies empowers you to ask the right questions of your service provider.
A high-quality relining job follows a rigorous, multi-stage procedure:
Core Inspection & Cleaning: The process begins with a thorough inspection as previously detailed. Once approved, the core is cleaned, often via shot blasting or thermal cleaning, to remove all rust, grease, and old paint, bringing it down to bare metal.
Removal of Old Lining: The worn lining and any old rivets or adhesive are carefully removed, ensuring the shoe table is not damaged.
Surface Preparation: The shoe table (the surface where the new lining will sit) is prepared to ensure maximum adhesion. This may involve grinding or texturing the surface.
Application of New Lining: The new brake lining is applied using either the bonding or riveting method, executed with precision equipment to ensure correct placement and secure attachment.
Finishing and Quality Control: The relined shoe is finished with a coat of corrosion-resistant paint. Most importantly, it may undergo arc grinding to perfectly match the drum's curvature. A final quality check ensures the work meets all specifications.
Even with a defined process, risks exist. Here’s how to address them:
Risk: Contamination leading to bond failure. Even a small amount of oil or grease left on the shoe core can compromise the adhesive, leading to the lining separating from the shoe.
Mitigation: Choose a supplier with rigorous, documented cleaning and preparation protocols. Ask them to explain their process for ensuring a chemically clean surface before bonding.
Risk: Incorrect friction material for the application. Using a standard-duty lining in a severe-duty truck can lead to rapid wear and dangerous brake fade.
Mitigation: Provide your supplier with detailed information about your vehicle: make, model, gross vehicle weight rating (GVWR), and its typical use case (e.g., city driving, highway hauling, off-road). This allows them to select the correct material.
Risk: Improper fitment causing noise or uneven wear. A relined shoe that isn't perfectly concentric with the drum will cause chattering, vibrations, and hot spots.
Mitigation: Insist on arc grinding. This finishing step is the ultimate mitigation for fitment issues, ensuring the lining makes full, even contact with the drum from the start.
The job isn't done once the wheels are back on. Proper break-in, also known as "burnishing," is crucial for seating the new lining. This process involves a series of controlled stops to heat-cycle the new material, which cures the resins in the lining and allows it to conform perfectly to the drum surface. Follow the supplier's or manufacturer's specific burnishing procedure to ensure optimal performance, quiet operation, and a long service life.
Brake relining is a safe, sustainable, and highly cost-effective maintenance strategy when the right conditions are met and a reputable, expert supplier is chosen. It offers significant financial benefits for fleets and is often the only practical solution for vintage and specialized equipment. The decision to reline instead of replace should not be taken lightly. It requires a clear and logical approach.
The choice hinges on a simple framework: a thorough inspection of the core component, a clear understanding of the vehicle's application, and a diligent evaluation of the supplier's capabilities. By ensuring the brake shoe core is structurally sound and by partnering with a provider who uses high-quality materials and proven processes, you can achieve braking performance that meets or exceeds OEM standards. This balanced approach ensures you make a choice that is both economically smart and uncompromising on safety.
If you're evaluating brake service options for your fleet or specialized vehicle, contact our specialists. We can help you analyze your components and discuss the most effective and reliable solution for your needs.
A: Yes, when performed correctly by a professional service using high-quality materials, a relined brake shoe meets or exceeds OEM safety and performance specifications. The safety is contingent on the integrity of the original shoe core and the quality of the relining work.
A: Neither is universally "better"; it depends on the application. Modern bonding offers more friction surface area and avoids drum scoring, while riveting is a proven, robust method often preferred in heavy-duty applications. A knowledgeable supplier can recommend the best option for your specific needs.
A: The lifespan of a relined brake is comparable to a new OEM part, provided the friction material is of equal or better quality and the system is installed correctly. Wear life is ultimately determined by the lining material, vehicle application, driving conditions, and proper maintenance.
A: While technically possible, relining disc brake pads is uncommon for standard automotive use. The backing plates are typically stamped steel and not designed for reuse. The cost of new pads is low enough that replacement is the standard, most economical, and safest practice. Relining is primarily a solution for drum brake shoes and industrial brake bands.
