Brake shoe for Eaton: model selection guide

You can pick the right brake shoe for your Eaton vehicle by using a simple process. First, find out your model and measure the main sizes. Use tools to help you identify and look at both OEM and aftermarket choices. Good products like the Dingchi 4311-J Brake Lining help your vehicle handle tough jobs and keep your service plan going. Many people have problems like missing part numbers or too many choices. The table below lists some common problems in the industry:

Key Takeaways

• Find your Eaton model number to pick the right brake shoe. You can see it on a metal plate or in the owner's manual.

• Measure the brake shoe size with care. Look at the shoe width, drum size, and pivot openings. This makes sure it fits well.

• Use charts to match your sizes with the correct brake shoe part numbers. This helps you not make mistakes.

• Think about both OEM and aftermarket choices. Aftermarket parts like Dingchi 4311-J can work well and cost less.

• If you have problems, ask experts or dealers for help. They can help you choose the right brake shoe for your measurements and vehicle.

Find Your Eaton Model

Locate Model Number

First, you need to find the model number on your Eaton equipment. This number helps you pick the right brake shoe for your vehicle. Look for a metal plate or sticker on your truck or trailer. You might see it near the driver’s seat, on the door frame, or under the hood. If you do not see it there, check your owner’s manual. Manuals usually show the model number and other details. Some Eaton vehicles have the model number stamped on the axle or brake assembly. If you still cannot find it, go to the manufacturer’s website or ask your dealer for help.

Tip: Take a clear photo of the model number plate. This helps you share the information with parts suppliers or mechanics.

Identify Application Type

It is also important to know the application type. How you use your vehicle changes which brake shoe you need. For example, trucks that carry heavy loads on highways need different brakes than city buses or construction vehicles. Here are some common application types and their brake system choices:

• Linehaul or long-haul tractors often use disc systems for long trips.

• Vocational trucks, like dump trucks or cement mixers, usually use drum and shoe systems. These systems work well in tough conditions and last longer.

• Trailers mostly use drum systems because they are simple and cost less. Some high-end fleets now use air disc brakes.

• Buses and transit vehicles like disc systems for smoother stops and comfort.

When you know your application type, you can pick a brake shoe that fits your needs. This step helps you avoid mistakes and keeps your Eaton vehicle safe.

Measure Brake Shoe Dimensions

Measuring your brake shoe is a key step in finding the right part for your Eaton vehicle. You need to check several sizes to make sure you get a perfect fit. If you measure carefully, you will avoid mistakes and keep your vehicle safe.

Shoe Width and Drum Size

Start by measuring the width of the shoe. Use a caliper and measure across the center of the shoe. Common widths are 4 inches, 5 inches, 6 inches, 7 inches, and 8.625 inches. Write down your measurement so you do not forget it.

Next, check the drum diameter. You can find this in your vehicle’s manual or by measuring the inside of the brake drum. Common drum sizes include 15 x 4 inches, 16.5 x 7 inches, and 16.5 x 8.625 inches. Always match the shoe width to the drum size for the best performance.

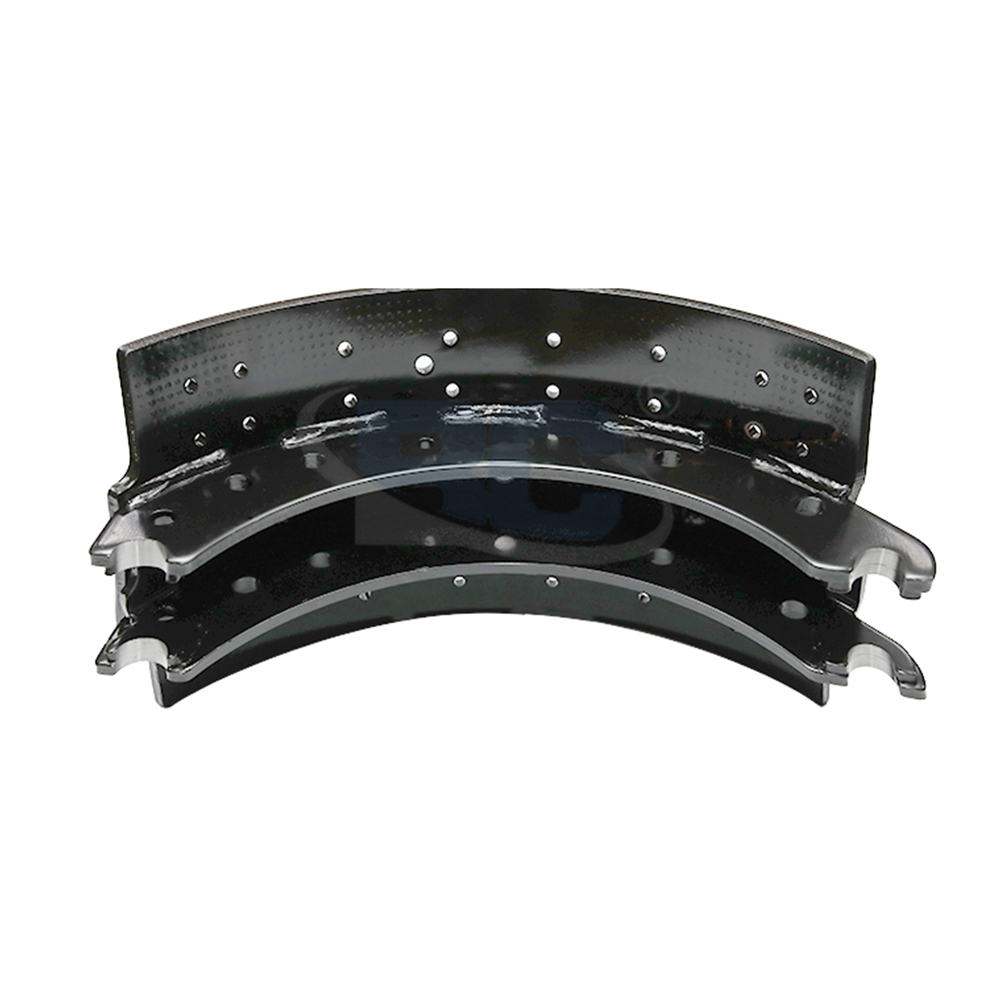

Tip: The Dingchi 4311-J Brake Lining fits a drum size of 419 mm, with a width of 177.8 mm. This shows how important it is to know the exact size before you buy.

Pivot and Cam End Openings

You also need to measure the pivot end and cam end openings. The pivot end opening is where the shoe connects to the anchor pin. Most pivot ends measure between 0.625 inches and 1.125 inches. The cam end opening is usually smaller and fits the S-cam roller. These sizes often range from 0.625 inches to 1 inch.

Write down all your measurements. You will need them when you look up parts or talk to a supplier. Accurate measurements help you find the right brake shoe and avoid returns or delays.

Note: Always double-check your numbers. Even a small mistake can lead to the wrong part.

Eaton Brake Shoe Identification

Use Identification Charts

You can use identification charts to match the right brake shoe to your Eaton vehicle. These charts show you the part number, drum diameter, shoe width, and the type of application. You will find these charts in the Eaton Fuller brake shoe guide or on trusted supplier websites. They help you compare your measurements with the listed options.

Here is a sample chart that helps you see how different part numbers fit different Eaton models:

You can use this table to check your measurements. For example, if your drum diameter is 16.5 inches and your shoe width is 7 inches, you might need a 4311J or 4708 part. Always check your application type, such as High Mount or Low Mount, to make the best choice.

Tip: The Eaton Fuller brake shoe guide gives you more details and pictures. You can use it to double-check your selection.

Cross-Reference Part Numbers

You may not always have the original part number. In this case, you can use cross-reference tools. These tools let you enter your old part number or measurements. They show you matching options from Eaton and other brands. Many online lookup tools help you with this process.

If you cannot find the part number on your brake shoe, look for numbers stamped on the metal or printed on the lining. Sometimes, the number is missing or hard to read. You can use your measurements and the brake shoe guide to narrow down the choices. Compare your results with the Eaton Fuller brake shoe guide to confirm the match.

If you still have trouble, ask a dealer or parts expert for help. Give them your measurements and application type. They can use their resources to find the right brake shoe for your Eaton vehicle.

Note: Always keep a record of the part number you use. This makes future brake shoe identification much easier.

Compare OEM and Aftermarket Options

OEM vs Aftermarket Pros and Cons

When you choose a brake shoe for your Eaton vehicle, you face two main options. You can pick an OEM part or an aftermarket part. OEM stands for Original Equipment Manufacturer. These parts come from the same company that made your vehicle. Aftermarket parts come from other companies. Both types must meet strict rules for safety and performance.

You want your brake service to be safe and reliable. Both OEM and aftermarket brake shoes must follow FMVSS 121 standards. These rules make sure your brakes work well in all conditions. The table below shows how OEM and aftermarket parts compare:

OEM parts give you a perfect match for your Eaton vehicle. They often cost more. Aftermarket parts can save you money. Many aftermarket brands now offer the same quality as OEM. You can trust them for brake service if you choose a reliable brand.

When to Choose Aftermarket (e.g., Dingchi 4311-J)

You should think about aftermarket options when you want strong performance and good value. The Dingchi 4311-J Brake Lining works well for heavy-duty jobs. It fits trucks and trailers that carry big loads. This brake shoe meets all FMVSS 121 rules. It gives you safe stops, even in tough conditions.

You can use the Dingchi 4311-J for long trips or city driving. It lasts longer and helps lower your service costs. Many fleet owners pick this brake shoe for its strength and safety. If you want a trusted part for your next brake service, the Dingchi 4311-J is a smart choice.

Tip: Always check your vehicle’s needs before you pick a part. A good aftermarket brake shoe can keep your Eaton vehicle safe and on the road.

Troubleshoot Brake Shoe Selection

Picking the right brake shoe for your Eaton vehicle can be tricky. You might have problems like missing part numbers or too many choices. Here are some steps you can use to fix these problems and keep your service going.

Missing Part Numbers

If you cannot find the part number on your old brake shoe, do not worry. You can still figure out the right part. First, clean the shoe and look for any numbers or marks. Dirt or rust can hide these details. If you do not see anything, use your measurements. Write down the shoe width, drum size, and pivot or cam end openings. These numbers help you match your part with charts or guides.

Tip: Take clear photos of your brake shoe and your measurements. You can show these pictures to a parts supplier for more help.

Multiple Compatible Options

You might see more than one brake shoe that fits your Eaton vehicle. This happens when different parts have the same size or shape. To pick the best one, check how you use your vehicle. Think about if you carry heavy loads, drive in the city, or go on long trips. Use Eaton diagrams or online guides to compare the choices. Look for things like lining material or special features.

Consult Experts or Dealers

If you are still not sure, ask an expert for help. You can call your local dealer or a trusted parts supplier. Share your measurements, photos, and how you use your vehicle. Experts know Eaton systems well and can help you pick the right part. You can also use online support or chat tools from big suppliers.

Note: Getting advice from a professional can save you time and stop mistakes. Always keep a record of your final part number for the next time you need service.

You can select the right brake shoe for your Eaton vehicle by following clear steps. Measure each part with care and write down your results. Check charts and guides to match your numbers. If you feel unsure, ask an expert or choose a trusted aftermarket option like Dingchi 4311-J. Keep a record of your choices to make your next service easier.

FAQ

How do I know if my Eaton brake shoe needs replacement?

Look for cracks or uneven spots on the brake lining. If the brake lining is thin, it is time to change it. Squealing sounds or weak brakes mean you need a new brake shoe. Check your brakes often to stay safe.

Can I use aftermarket brake shoes for Eaton vehicles?

You can use aftermarket brake shoes on Eaton vehicles. Make sure they fit your model and follow safety rules. Dingchi 4311-J is a good choice for tough jobs.

What tools do I need to measure brake shoe dimensions?

You will need a caliper, tape measure, and notepad. Use them to check the width, drum size, and openings. Write down your numbers to help you find the right part.

Why is brake shoe material important?

The material changes how well your brakes work. Good materials make brakes last longer and stop better. Pick a brake shoe that fits how you drive.

Who can help if I cannot identify my Eaton brake shoe?

Ask a parts supplier, dealer, or mechanic for help. Give them your measurements and photos. They can help you find the right brake shoe for your vehicle.
