In the world of vehicle maintenance, certain terms are often used interchangeably, creating confusion for fleet managers, mechanics, and parts procurers alike. Among the most common mix-ups is the one between "brake shoe" and "brake lining." While they work together as a single unit, they are fundamentally distinct components. Understanding their relationship isn't just a matter of semantics; it is critical for ensuring optimal braking performance, vehicle safety, and the long-term, cost-effective management of any fleet. A mistake in sourcing can lead to premature wear, increased downtime, and compromised safety. This definitive guide will clarify the roles of each component, explain how they function within a drum brake system, and provide a clear framework for evaluating and selecting the correct parts for your specific application.
Brake Shoe: The rigid, crescent-shaped metal structure that acts as the carrier or frame within a drum brake system.
Brake Lining: The heat-resistant friction material that is attached to the curved outer surface of the brake shoe. This is the part that makes contact with the brake drum to create friction.
The Core Relationship: A brake shoe and its brake lining form a single, essential assembly. The lining is the consumable part, while the shoe is the foundational structure.
Primary Function: This assembly works exclusively in drum brake systems, where it is forced outward to press against the inner surface of a rotating drum, slowing the vehicle.
Decision Focus: The critical evaluation for performance and TCO isn't choosing between a shoe and a lining, but in selecting a complete brake shoe assembly based on the lining's material composition and its attachment method to the shoe.
To make informed purchasing decisions, you must first grasp the distinct role each part plays. Think of the brake shoe as the skeleton and the brake lining as the muscle. One provides structure, and the other performs the critical work. They are inseparable partners in the task of slowing a vehicle.
The brake shoe is the non-consumable, arc-shaped metal component at the heart of the assembly. Forged from high-strength steel, its primary purpose is to provide a rigid, stable platform for the friction material. It is engineered to withstand the immense forces exerted during braking without bending or deforming. Beyond just holding the lining, the shoe serves as the mounting point for essential hardware within the drum brake assembly, including return springs and adjusters. Its structural integrity is non-negotiable, as any failure in the shoe would lead to a catastrophic loss of braking power.
The brake lining is the workhorse of the drum brake system. It is the consumable layer of specialized friction material that is securely affixed to the outer curved surface of the brake shoe. This material is formulated from a complex blend of compounds designed to achieve several critical objectives:
Generate high friction against the brake drum to slow the vehicle effectively.
Resist "brake fade," a dangerous loss of performance caused by extreme heat buildup.
Minimize wear on both itself and the brake drum to extend service life.
Operate quietly and smoothly to avoid noise and vibration.
Ultimately, the performance characteristics of the entire brake system—its stopping power, noise levels, and lifespan—are primarily determined by the quality and composition of the brake lining.
Understanding the components is only half the story. Their value and function become clear when you see how they operate within the context of a drum brake system. This mechanism, while older than disc brake technology, remains a reliable and cost-effective solution, especially for the rear axles of many vehicles.
The process of slowing a vehicle with drum brakes is a masterpiece of mechanical leverage and hydraulic force. Here is how it works:
When the driver presses the brake pedal, hydraulic fluid is forced through the brake lines to a wheel cylinder located inside the brake drum.
This hydraulic pressure activates small pistons within the wheel cylinder, pushing them outward.
The pistons make contact with the top ends of the brake shoe assemblies, forcing them to pivot and expand outward against the tension of return springs.
This outward movement presses the brake lining firmly against the spinning inner surface of the brake drum.
The intense friction created between the lining and the drum converts the vehicle's kinetic energy (motion) into thermal energy (heat), which rapidly slows the rotation of the wheel.
When the driver releases the brake pedal, the hydraulic pressure drops, and the return springs pull the shoes and linings away from the drum, allowing the wheel to spin freely again.
It is important to contrast this mechanism with that of a disc brake system. Disc brakes use a flat, spinning rotor (the disc) instead of a drum. Instead of shoes, they use flat brake pads held in a caliper. When the brakes are applied, the caliper clamps the pads onto both sides of the rotor, squeezing it to create friction.
In essence, brake pads are the functional equivalent of brake shoe assemblies, but they are designed for an entirely different system. You cannot use one in place of the other. Many modern passenger cars and light trucks use a "front-disc, rear-drum" configuration. This setup leverages the superior heat dissipation and stopping power of disc brakes on the front wheels, which handle the majority of braking force, while using the more cost-effective and simpler drum brake system on the rear wheels.
When sourcing brake components, the real decision isn't between a shoe and a lining, but among different types of complete brake shoe assemblies. The key variables that impact performance, safety, and total cost of ownership (TCO) are the lining's material, its attachment method, and the overall manufacturing quality.
The friction material is not a one-size-fits-all product. Different formulations are engineered for different applications, each with a unique profile of performance, durability, and cost.
| Material Type | Best For | Pros | Cons |
|---|---|---|---|
| Organic (NAO) | Light-duty passenger vehicles, daily commuters | Quiet operation, gentle on brake drums, low cost | Wears faster, can fade under high heat, produces more dust |
| Semi-Metallic | Commercial vehicles, trucks, towing applications | Excellent heat transfer, durable, superior stopping power | Can be noisier, causes more wear on drums |
| Ceramic | Performance vehicles, luxury cars, applications where noise/dust are primary concerns | Extremely quiet, very low dust, long life, stable performance | Highest initial cost |
The way the lining is attached to the steel shoe is just as important as the material itself. This bond must withstand immense heat and shear forces. There are two primary methods used in the industry.
Bonded (Glued): In this method, the lining is affixed to the shoe using a powerful, high-temperature industrial adhesive.
Advantages: Bonding allows the lining to have full contact with the shoe, which promotes more even heat distribution. It also provides more usable friction material since the lining can be worn down further without hitting any hardware.
Disadvantages: The primary risk is delamination (the lining separating from the shoe) if the manufacturing process is of low quality or if the adhesive fails under extreme conditions.

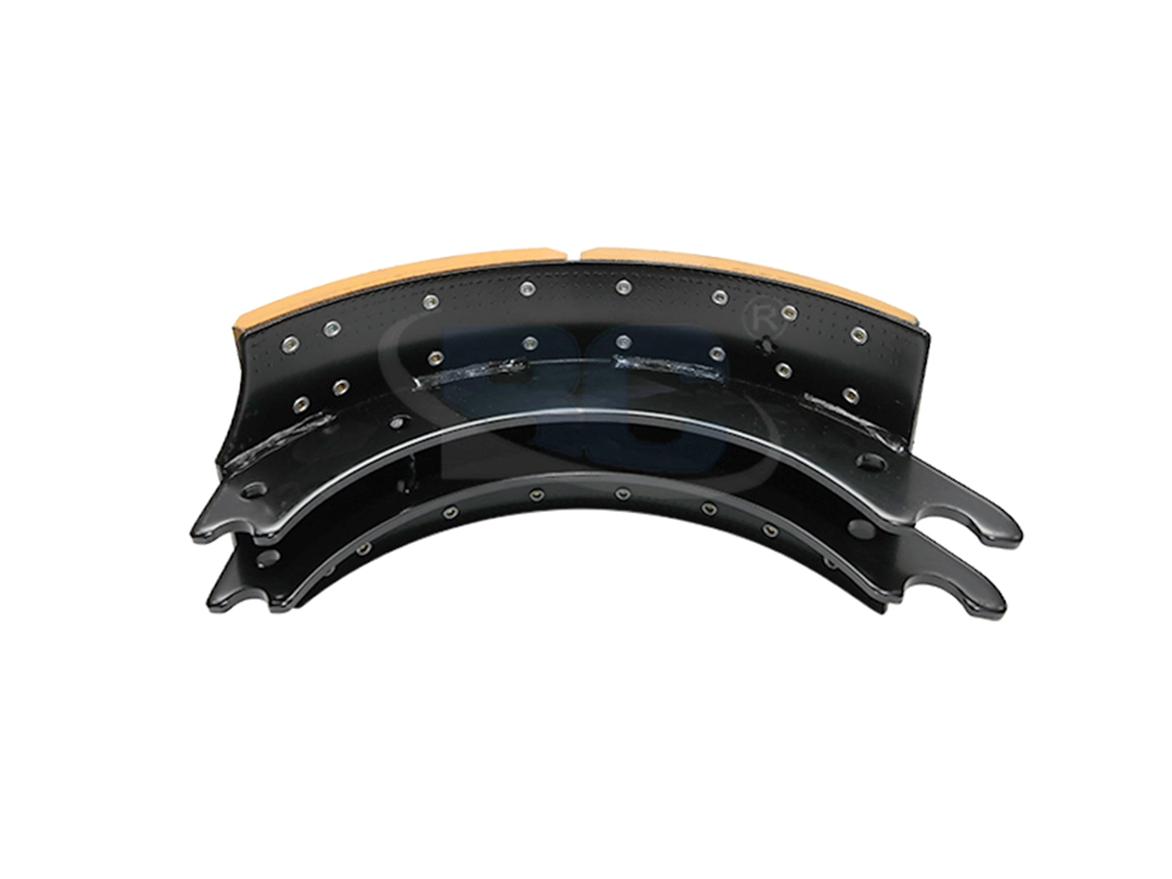

Riveted: This is a mechanical attachment method where the lining is fastened to the shoe with a series of metal rivets.
Advantages: Riveting creates a very strong mechanical bond that is less susceptible to failure from adhesive breakdown, especially in harsh operating environments.
Disadvantages: The lining can only be worn down to the top of the rivet heads, meaning there is less usable friction material per set. If the linings are worn too far, the metal rivets can make contact with the drum, causing deep scoring and expensive damage.
Finally, consider the origin of the shoe itself.
New Assemblies: This consists of a brand-new steel shoe paired with a new lining. This is the gold standard, offering the highest assurance of structural integrity, correct geometry, and proper fitment. For safety-critical and heavy-duty applications, new assemblies are strongly recommended.
Relined Assemblies ("Relining"): This process involves taking a used brake shoe (the "core"), inspecting it for cracks and deformation, stripping off the old lining, and applying a new one. While this can be a more cost-effective and environmentally friendly option, its quality is highly dependent on the condition of the original core and the rigor of the inspection and relining process.
Choosing the right component is impossible without choosing the right partner. A knowledgeable and reputable supplier is essential for navigating the complexities of brake system components and ensuring you receive parts that meet your specific needs for safety, performance, and budget.
Your goals will dictate your sourcing strategy.
For Fleets & Commercial Use: The primary objective is to minimize vehicle downtime and achieve the lowest total cost of ownership per mile. Success is measured by long component life, predictable maintenance schedules, driver safety, and compliance with transportation regulations (e.g., DOT standards).
For Repair Shops & Distributors: The main goal is to provide customers with reliable, safe parts that prevent comebacks and build trust. Success is defined by having a well-curated inventory of quality options that cater to different vehicle types, customer needs, and price points.
When vetting potential suppliers, look for key indicators of quality and expertise.
Technical Transparency: A credible brake-lining supplier will do more than just market their products. They provide detailed technical data sheets with material specifications and performance data. Look for friction ratings, often printed on the edge of the lining as "edge codes," which indicate the material's cold and hot friction coefficients (e.g., "FF," "GG").
Manufacturing Certifications: Seek out suppliers who adhere to internationally recognized quality management standards like ISO 9001. This certification demonstrates a commitment to process control, consistency, and traceability from raw materials to the finished product.
Application Expertise: The best suppliers act as consultants. They should be able to ask the right questions and recommend the ideal lining material and attachment method based on crucial variables like vehicle type, Gross Vehicle Weight Rating (GVWR), and typical operating conditions (e.g., frequent stops in city delivery vs. long-haul highway driving).
Follow a structured approach to find the right partner:
Evaluate the Supplier's Range: Confirm that they offer a comprehensive range of solutions for your specific vehicle portfolio, whether it's light-duty vans, medium-duty trucks, or heavy-duty commercial vehicles.
Request Technical Data Sheets: Move beyond marketing claims. Ask for hard evidence of performance, material composition, and compliance with industry standards.
Inquire about Warranty and Support: A trustworthy supplier will stand behind their product with a clear, comprehensive warranty and provide accessible technical support to answer questions and resolve any issues.
The distinction is simple yet crucial: the brake shoe is the foundational metal carrier, while the brake lining is the consumable friction material it holds. However, making a smart purchasing decision requires you to look beyond this basic definition and evaluate the complete assembly as a system. The choice of lining material, the reliability of the attachment method, and the quality assurance of the supplier are the key variables that directly impact braking safety, vehicle uptime, and long-term maintenance costs. For any serious fleet manager or parts distributor, the next step is clear: engage with a supplier who prioritizes technical transparency and provides the expert guidance needed to select the perfect component for the job.
A: No. Brake shoes are arc-shaped and designed exclusively for the internal-expanding mechanism of drum brake systems. Brake pads are flat and designed to be used in the clamping caliper of a disc brake system. While a single vehicle can have both systems (e.g., discs on the front, drums on the rear), the parts for each are unique and not interchangeable.
A: Yes, this process is known as "relining." It involves removing the worn friction material and bonding or riveting a new lining onto the existing metal shoe. While it can be a cost-effective alternative, purchasing a complete new assembly is often preferred because it guarantees the structural integrity and correct dimensions of the steel shoe, eliminating risks from metal fatigue or damage.
A: The choice depends on your vehicle and its typical use. For a standard passenger car used for daily commuting, Organic (NAO) or Ceramic linings offer quiet, effective performance. For trucks, commercial vans, or any vehicle used for towing, a Semi-Metallic lining provides the superior durability and heat resistance needed for heavy-duty work.
A: The most common signs include a scraping or grinding noise from the wheels, especially during braking. You may also notice a reduced braking response or a "soft" feel in the brake pedal. Another key indicator is a parking brake that has to be pulled up much higher than usual to engage effectively. Regular visual inspection during tire rotations is the most reliable method of assessment.
